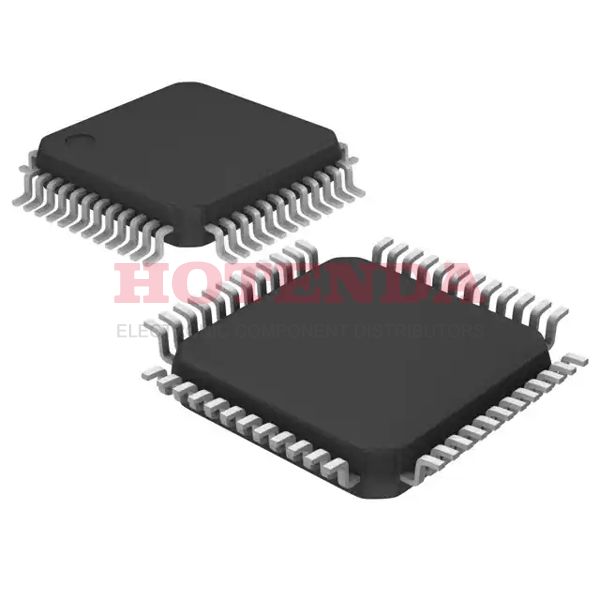

STM32F102C6T6A Description
The STM32F102xx medium-density USB access line incorporates the high-performance Arm? Cortex?-M3 32-bit RISC core operating at a 48 MHz frequency, high-speedembedded memories (Flash memory of 16 or 32 Kbytes and SRAM of 4 or 6 Kbytes), andan extensive range of enhanced peripherals and I/Os connected to two APB buses. Alldevices offer standard communication interfaces (one I2C, one SPI, one USB and twoUSARTs), one 12-bit ADC and two general-purpose 16-bit timers.The STM32F102xx family operates in the –40 to +85 °C temperature range, from a 2.0 to3.6 V power supply. A comprehensive set of power-saving mode allows the design oflow-power applications.
STM32F102C6T6A Features
? Core: Arm? 32-bit Cortex?-M3 CPU
– 48 MHz maximum frequency,
1.25 DMIPS/MHz (Dhrystone 2.1)
performance at 0 WS memory access
– Single-cycle multiplication and hardware
division
? Memories
– 16 or 32 Kbytes of Flash memory
– 4 or 6 Kbytes of SRAM
? Clock, reset and supply management
– 2.0 to 3.6 V application supply and I/Os
– POR, PDR and programmable voltage
detector (PVD)
– 4 to 16 MHz crystal oscillator
– Internal 8 MHz factory-trimmed RC
– Internal 40 kHz RC
– PLL for CPU clock
– 32 kHz oscillator for RTC with calibration
? Low power
– Sleep, Stop and Standby modes
– VBAT supply for RTC and backup registers
? Debug mode
– Serial wire debug (SWD) and JTAG
interfaces
? DMA
– 7-channel DMA controller
– Peripherals supported: timers, ADC, SPIs,
I
2Cs and USARTs
? 1 × 12-bit, 1.2 μs A/D converter (up to 16
channels)
– Conversion range: 0 to 3.6 V
– Temperature sensor
? Up to 51 fast I/O ports
– 37/51 I/Os all mappable on 16 external
interrupt vectors and almost all 5 V-tolerant
STM32F102C6T6A Applications
? Application control and user interface
? Medical and handheld equipment
? PC peripherals, gaming and GPS platforms
? Industrial applications: PLC, inverters, printers, and scanners
? Alarm systems, Video intercom, and HVAC
