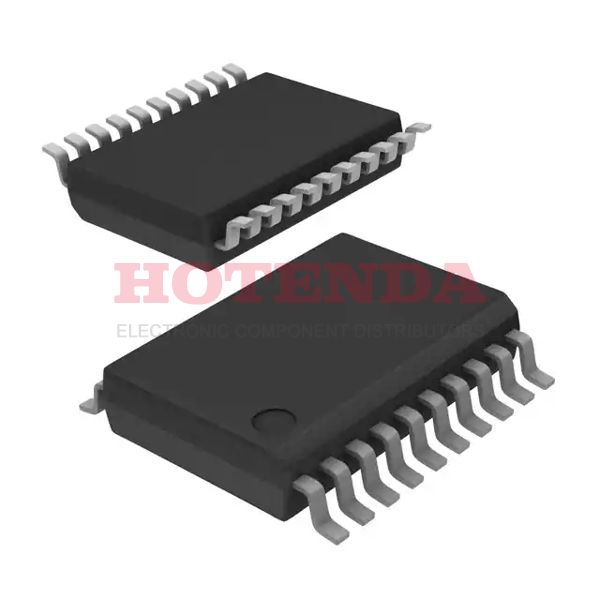

Name: PIC16C54-RCI/SS
Brand: Microchip Technology
SKU: PIC16C54-RCI/SS
Price: 4.58000 USD
Availability: InStock

new-10%

PIC16C54-RCI/SS

Manufacturer part number:PIC16C54-RCI/SS

Manufacturer:Microchip Technology

Description:768B 512 x 12 OTP PIC 8-Bit Microcontroller PIC® 16C Series PIC16C54 20 Pin 4MHz 5V 20-SSOP (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:PIC16C54-RCI/SS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.209, 5.30mm Width)
Surface Mount	YES
Number of Pins	20
Supplier Device Package	20-SSOP
Mounting Style	SMD/SMT
Instruction Set Architecture	RISC
Clock Freq	4(MHz)
Operating Temperature Classification	Industrial
Package Type	SSOP
Number of Timers - General Purpose	1
Operating Temp Range	-40C to 85C
# I/Os (Max)	12
Power Dissipation (Max)	800(mW)
Total Internal Ram Size	25B(kB)
Device Core Size	8(b)
Operating Supply Voltage (Max)	6.25(V)
Operating Supply Voltage (Typ)	3.3/5(V)
Rad Hardened	No
Operating Supply Voltage (Min)	3(V)
Programmable	Yes
Mounting	Surface Mount
Number of I/Os	12 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	PIC
RoHS	Details
Package	Tube
Base Product Number	PIC16C54
Mfr	Microchip Technology
Data Converters	-
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® 16C
Published	1997
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	20
Subcategory	Microcontrollers - MCU
Max Power Dissipation	800mW
Terminal Position	DUAL
Terminal Form	GULL WING
Supply Voltage	5V
Terminal Pitch	0.65mm
Frequency	4MHz
Base Part Number	PIC16C54
Pin Count	20
Operating Temperature (Max)	85C
Operating Temperature (Min)	-40C
Supply Voltage-Max (Vsup)	6.25V
Supply Voltage-Min (Vsup)	3V
Memory Size	768B
Oscillator Type	External
Number of I/O	12
Speed	40 MHz
RAM Size	25 x 8
Voltage - Supply (Vcc/Vdd)	3V~6.25V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	POR, WDT
Program Memory Type	OTP
Core Size	8-Bit
Program Memory Size	768B 512 x 12
Connectivity	-
Bit Size	8
Watchdog Timer	Yes
Access Time	4 μs
Has ADC	NO
DMA Channels	NO
Data Bus Width	8b
PWM Channels	NO
DAC Channels	NO
Number of Timers/Counters	1
Product Type	8-bit Microcontrollers - MCU
ROM (words)	512
EEPROM Size	-
RAM (words)	25
On Chip Data RAM Width	8
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Length	7.2mm
Width	5.3 mm
Height	1.75 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC16C54-RCI/SS Product Details

PIC16C54-RCI/SS Overview

The package is 20-SSOP (0.209, 5.30mm Width)-shaped. There are 12 I/Os. In the case of the IC chip, the type of mounting is Surface Mount. Microcontroller is based on the 8-Bit core architecture. The type of program memory it uses is OTP. Temperatures in the range of -40°C~85°C TA are operated by this Microcontroller. It is part of the PIC® 16C series of electrical components. Having a size of 768B 512 x 12, Microcontroller has a program memory of X bytes. A PIC Core Processor is at the core of this Microcontroller. This device belongs to the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. IC Chip 20 has 20 terminations. 8-bits are used for its size. IC Chip has 5V volt supply outputs. With NO DMA channels, Microcontroller chip can handle large data transfers. 768B is the size of the memory in the IC part. Using the base part number PIC16C54, you will be able to find alternatives for the part. Using a 4MHz frequency, this electronic part can perform efficiently. Devices work in NO PWM channels. On the chip, 20 pins are accessible. In total, there are 1 timers/counters on the device. The pin count is 20.
