STD60N3LH5 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mount
Surface Mount
Mounting Type
Surface Mount

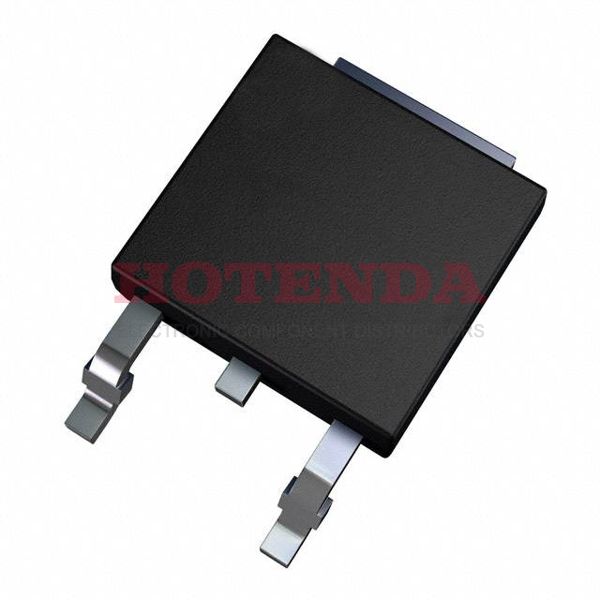

Package / Case
TO-252-3, DPak (2 Leads + Tab), SC-63
Number of Pins
3
Transistor Element Material
SILICON
Operating Temperature
-55°C~175°C TJ
Packaging
Tape & Reel (TR)
Series
STripFET™ V
JESD-609 Code
e3
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
2
ECCN Code
EAR99
Resistance
8MOhm
Terminal Finish
Matte Tin (Sn) - annealed
Additional Feature
ULTRA-LOW RESISTANCE
Subcategory
FET General Purpose Power
Technology
MOSFET (Metal Oxide)
Terminal Form
GULL WING
Peak Reflow Temperature (Cel)
260
[email protected] Reflow Temperature-Max (s)
30
Base Part Number
STD60N
Pin Count
3
JESD-30 Code
R-PSSO-G2
Number of Elements
1
Power Dissipation-Max
60W Tc
Element Configuration
Single
Operating Mode
ENHANCEMENT MODE
Power Dissipation
60W
Case Connection
DRAIN
Turn On Delay Time
6 ns
FET Type
N-Channel
Transistor Application
SWITCHING
Rds On (Max) @ Id, Vgs
8m Ω @ 24A, 10V
Vgs(th) (Max) @ Id
3V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds
1350pF @ 25V
Current - Continuous Drain (Id) @ 25°C
48A Tc
Gate Charge (Qg) (Max) @ Vgs
8.8nC @ 5V
Rise Time
33ns
Drive Voltage (Max Rds On,Min Rds On)
5V 10V
Vgs (Max)
±20V
Fall Time (Typ)
4.2 ns
Turn-Off Delay Time
19 ns
Continuous Drain Current (ID)
24A
Threshold Voltage
1.8V
Gate to Source Voltage (Vgs)
22V
Drain Current-Max (Abs) (ID)
48A
Drain to Source Breakdown Voltage
30V
Height
2.4mm
Length
6.6mm
Width
6.2mm
Radiation Hardening
No
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:1408 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
STD60N3LH5 Product Details
STD60N3LH5 Description
STD60N3LH5 is a 35v N-channel STripFET? V Power MOSFET. This STD60N3LH5 is an N-channel Power MOSFET developed using STMicroelectronics’ STripFET?V technology. The STMicroelectronics STD60N3LH5 has been optimized to achieve very low on-state resistance, contributing to a FOM that is among the best in its class.
STD60N3LH5 Features
RDS(on) * Qg industry benchmark
Extremely low on-resistance RDS(on)
Very low switching gate charge
High avalanche ruggedness
Low gate drive power losses
STD60N3LH5 Applications
Rotary Switch
DIP Switch
Limit Switch
Reed Switch
Rocker Switch
Toggle Switch
