Name: STD17NF25
Brand: STMicroelectronics
SKU: STD17NF25
Price: 1.79000 USD
Availability: InStock

new-10%

STD17NF25

Manufacturer part number:STD17NF25

Manufacturer:STMicroelectronics

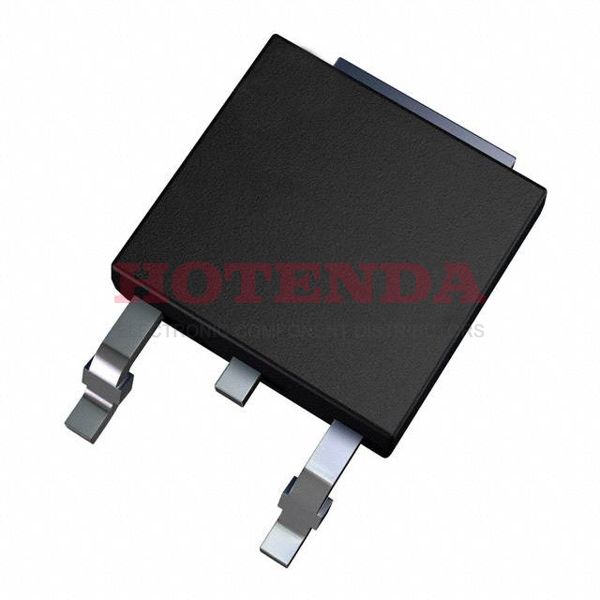

Description:STD17NF25 datasheet pdf and Transistors - FETs, MOSFETs - Single product details from STMicroelectronics stock available on our website

Case Package:SOT-23

Datasheet:STD17NF25 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Lifecycle Status	ACTIVE (Last Updated: 8 months ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Series	STripFET™ II
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Resistance	165mOhm
Terminal Finish	Matte Tin (Sn)
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	30
Base Part Number	STD17
Pin Count	3
JESD-30 Code	R-PSSO-G2
Number of Elements	1
Power Dissipation-Max	90W Tc
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	90W
Turn On Delay Time	8.8 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	165m Ω @ 8.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	1000pF @ 25V
Current - Continuous Drain (Id) @ 25°C	17A Tc
Gate Charge (Qg) (Max) @ Vgs	29.5nC @ 10V
Rise Time	17.2ns
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Fall Time (Typ)	8.8 ns
Turn-Off Delay Time	21 ns
Continuous Drain Current (ID)	8.5A
Threshold Voltage	3V
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	250V
Pulsed Drain Current-Max (IDM)	68A
Dual Supply Voltage	250V
Nominal Vgs	3 V
Height	2.4mm
Length	6.6mm
Width	6.2mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

STD17NF25 Product Details

STD17NF25 Description

STD17NF25 is a 205V N-channel STripFET? II Power MOSFET. The Power MOSFET STD17NF25 has been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the device suitable for use as primary switches in advanced high-efficiency isolated DC-DC converters for telecom and computer applications, and applications with low gate charge driving requirements.
