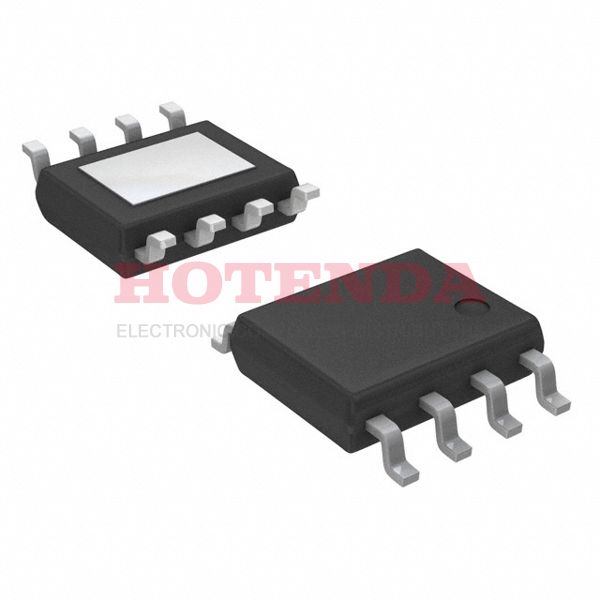

ST1S10BPHR Overview
There is an optimized performance in this voltage regulator because it utilizes the Tape & Reel (TR) package. Space-saving 8-SOIC (0.154, 3.90mm Width) Exposed Pad packages are available for this harley voltage regulator. In this case, DC DC switching regulator has 1 outputs configured to it. There are output pins on this DC DC switching regulator that generate Adjustable output. Surface Mount-mount switching regulator. As long as its operating temperature is -40°C~125°C TJ, dc to dc voltage regulator should perform well. A DC-DC switching regulator of this type operates at a switching frequency of 900kHz. The regulator is capable of operating with a dc to dc voltage regulator's minimum input voltage of 2.5V. As a result, the output voltage of the voltage regulator 12v (Min/Fixed) is 0.8V. This voltage regulator 12v features maximum design flexibility thanks to its 3A output current. As part of the ST1S10 series of regulators, the voltage regulators can be found. Voltage of voltage regulator can be delivered at 15.3V volts. In order to operate voltage regulator, there are 8 pins that must be connected. The maximal output voltage of 16.2V allows adjusting voltage regulator for simple operation. With 18V as the supply voltage, this DC-DC switching regulator will operate.
ST1S10BPHR Features
1 outputs
8 pins
Operating supply voltage of 18V
ST1S10BPHR Applications
There are a lot of STMicroelectronics ST1S10BPHR Voltage Regulators applications.
- Boring machines
- Servo drive system
- Industrial controllers
- CMM
- Adjustable voltage or current linear circuits
- Industrial robots
- Network technology
- Serial communication converter
- Terrestrial set-top boxes
- Telecommunications equipment
