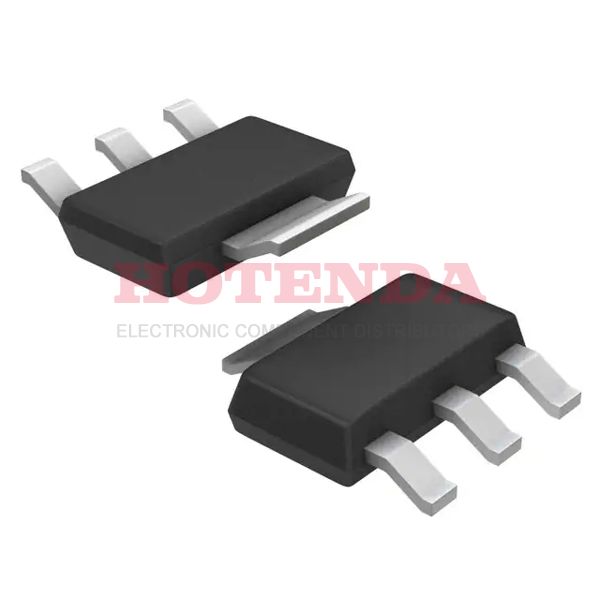

LD29080S33R Overview
The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a TO-261-4, TO-261AA case is used. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 4 pins may be available. For your information, part number LD29080 is the basic part number for this voltage regulator IC. There is a maximum output current of 800mA for this regulator to meet the operational requirements. It operates in the 5mA Quiescent Current state.
LD29080S33R Features
400mV dropout voltage
LD29080S33R Applications
There are a lot of STMicroelectronics
LD29080S33R Linear Voltage Regulators applications.
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
