MC78M12CDTX Overview

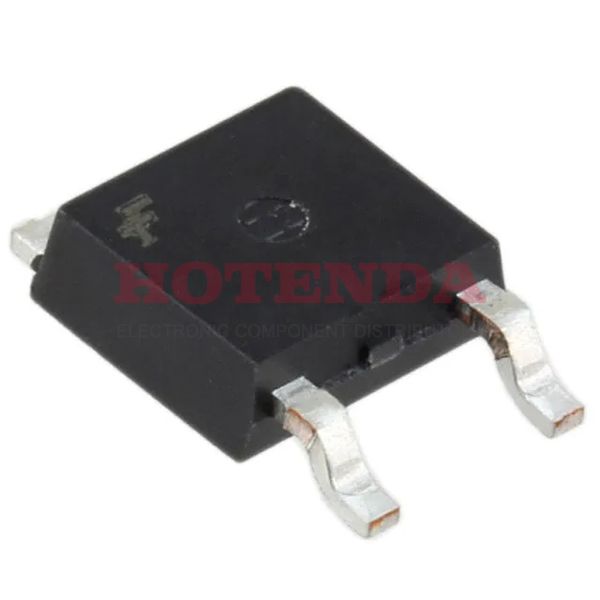

In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A TO-252-3, DPak (2 Leads + Tab), SC-63 case contains the Liner IC. This PMIC chip has an output type of Fixed. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is 0°C~125°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. The current output of this IC regulator is 500mA. There is a 10 volt dropout voltage on this transistor. It is MC78M12 for this voltage regulator IC, just for your information. It operates in the 6mA Quiescent Current state.
MC78M12CDTX Features
2V dropout voltage
MC78M12CDTX Applications
There are a lot of ON Semiconductor
MC78M12CDTX Linear Voltage Regulators applications.
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
