L78M15CV Overview

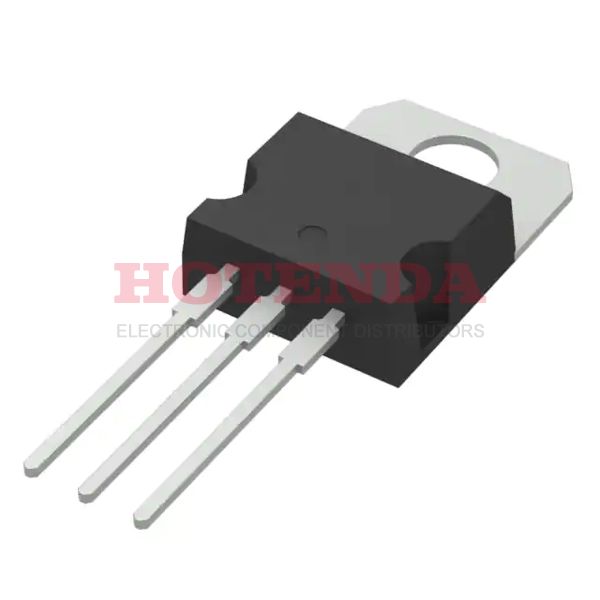

In a Tube case, the IC voltage regulator is delivered. A TO-220-3 case contains the Liner IC. In total, there are 3 terminations on the gadget. This PMIC chip has an output type of Fixed. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Through Hole varies its operating temperature range. The IC Voltage Regulator's operating temperature is 0°C~125°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. There are 3 pins in total on this board. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. There is a 10 volt dropout voltage on this transistor. A 3-pin is present on the chip. It is L78M15 for this voltage regulator IC, just for your information. A maximum output current of 500mA is required to meet the operation requirements. It operates in the 6mA Quiescent Current state. Tolerance for this regulator IC is 5%, which is very low.
L78M15CV Features
2V dropout voltage
5% tolerance
L78M15CV Applications
There are a lot of STMicroelectronics
L78M15CV Linear Voltage Regulators applications.
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
