80CNQ045SM

  • 80CNQ045SM - 80CNQ045SM datasheet pdf and Diodes - Rectifiers - Arrays product details from SMC Diode Solutions stock available on our website
  • 80CNQ045SM - 80CNQ045SM datasheet pdf and Diodes - Rectifiers - Arrays product details from SMC Diode Solutions stock available on our website

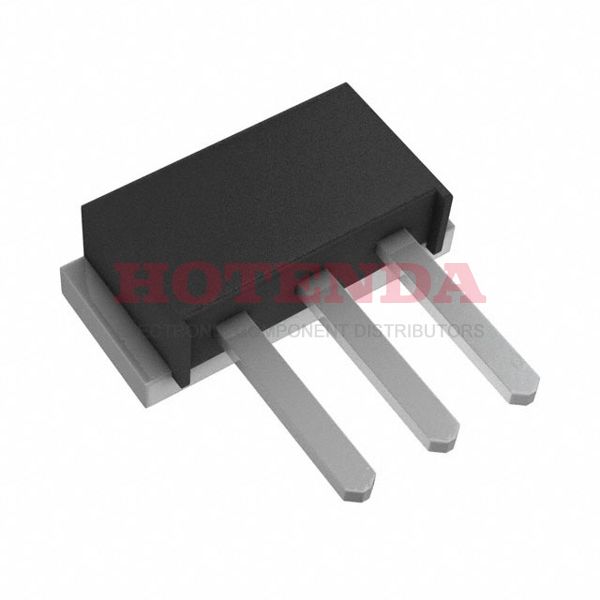

80CNQ045SM

80CNQ045SM

SMC Diode Solutions

80CNQ045SM datasheet pdf and Diodes - Rectifiers - Arrays product details from SMC Diode Solutions stock available on our website

SOT-23

80CNQ045SM Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 6 Weeks
Mounting Type Through Hole
Package / Case PRM2-SM
PackagingBulk
Published 2013
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 5mA @ 45V
Voltage - Forward (Vf) (Max) @ If 660mV @ 40A
Operating Temperature - Junction -55°C~150°C
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) 40A
Diode Configuration 1 Pair Common Cathode
RoHS StatusROHS3 Compliant
In-Stock:353 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$21.129234$21.129234
10$19.933240$199.3324
100$18.804943$1880.4943
500$17.740512$8870.256
1000$16.736332$16736.332

80CNQ045SM Product Details

80CNQ045SM Overview




80CNQ045SM Features



80CNQ045SM Applications


There are a lot of SMC Diode Solutions 80CNQ045SM applications of rectifier diode array.

  • Rectifiers for UBS
  • Rectifiers in switch mode power supplies (SMPS)
  • Crowbar applications
  • Rectifier for drives applications
  • General Rectification
  • Battery chargers
  • Free wheeling diode in low voltage converters
