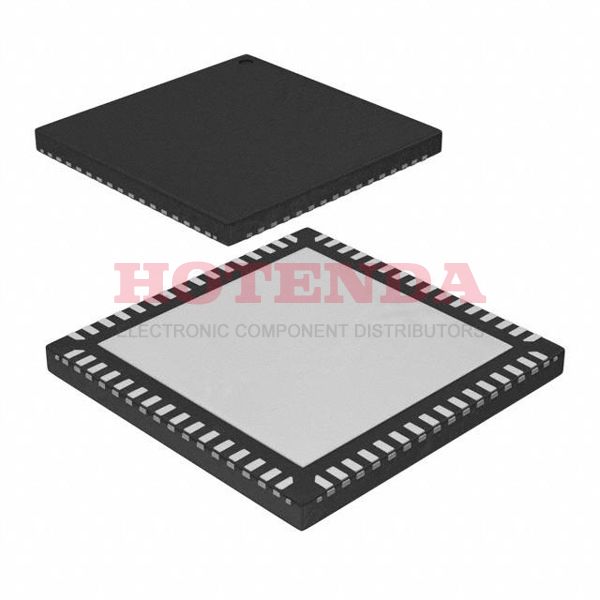

SI5382E-E-GMR Overview
Clock generator is packaged in the way of Tape & Reel (TR). In the 64-VFQFN Exposed Pad package, there is an embedded clock generator. Frequency generator is capable of operating at a maximum temperature of NOT SPECIFIED when reflowing. In this case, LVCMOS, Crystal is designed to be the input of the clock generator. An implementation of 2 circuits is required in order to fully utili2e the capabilities of the electrical part. Providing a maximum frequency of 735MHz 2.94912GHz, this clock-based RF synthesizer is suitable for a variety of applications. The Surface Mount allows this electrical component to be easily installed on the panel. This clock PLL works with a supply voltage of 1.71V~3.47V. Statistics suggest that the ambient temperature be set at -40°C~85°C, which is what is estimated by the test. There are several logic levels in HCSL, LVCMOS, LVDS, LVPECL logic that can be used with this clock generator. A Clock Jitter Attenuator is a classification for the electronic part in question.
SI5382E-E-GMR Features
Available in the 64-VFQFN Exposed Pad
SI5382E-E-GMR Applications
There are a lot of Silicon Labs SI5382E-E-GMR Clock Generators applications.
- Ultrasound diagnosis
- 1 Gigabit Ethernet
- Local oscillators (LOs)
- DVD recorders
- Camera systems
- Mechanical devices
- Local oscillator source in receiver
- Main oscillator in receiver
- High-frequency induction heating
- Threshold extension
