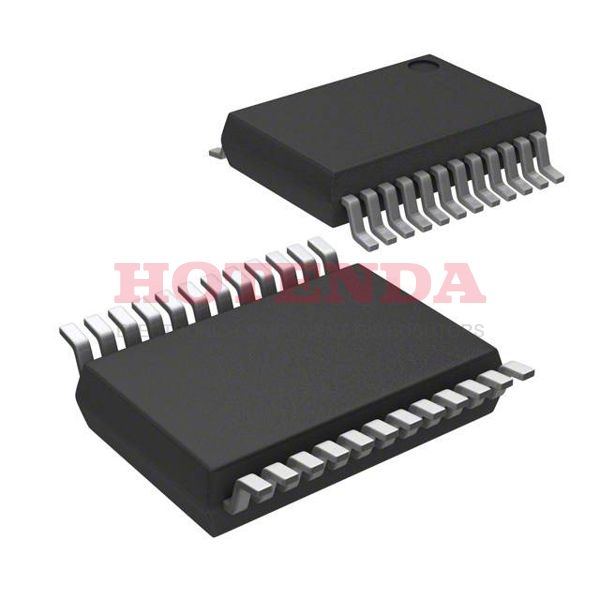

SI5351B-A-GU Overview
Clock generator is packaged in the way of Tube. As part of the 24-SSOP (0.154, 3.90mm Width) package, this clock generator is embedded. 24 terminations can be found in frequency synthesizer. For this clock generator ic, a voltage of 2.5V is required. In this clock generator, Crystal is used as the input to the clock. For full access to the electronic component's capabilities, 1 circuits are implemented. Using this clock-based frequency synthesizer, you can achieve a maximum frequency of 200MHz. Surface Mount-slots make it easy to mount this electronic component on panels. As far as the supply voltage is concerned, clock PLL can be used with 1.71V~3.6V. The ambient temperature should be set at -40°C~85°C, which is estimated by the test statistics. The RF synthesizer is compatible with LVCMOS logic levels. As far as electrical parts go, this component can be classified as a Clock Generator component. There is a 24-bit clock-generating IC built specifically for microprocessors in this frequency generator. This part number SI5351 is related to the following electrical components. It is possible to connect to the frequency generators via 24 pins. In terms of the supply voltage, analog clock generator can handle 3.3V volts. With CAN ALSO OPERATE AT 3.3V SUPPLY, this clock generator produces better clock signals. There is an electronic part in this series that belongs to the MultiSynth? family. 8 signal outputs enable clock PLL to magnify output frequency as high as possible. For the clock time generator to function properly, 25mA of supply current must be provided.
SI5351B-A-GU Features
Available in the 24-SSOP (0.154, 3.90mm Width)
Supply voltage of 2.5V
Operating supply voltage of 3.3V
SI5351B-A-GU Applications
There are a lot of Silicon Labs SI5351B-A-GU Clock Generators applications.
- Telecommunication systems
- FMCW Radar
- Microwave backhaul IF
- Electronic countermeasures
- Televisions
- Coherent carrier tracking
- Line cards used in telephone exchange
- Laptops
- Phase modulation cellular systems
- Picocells, femtocells and small cells
