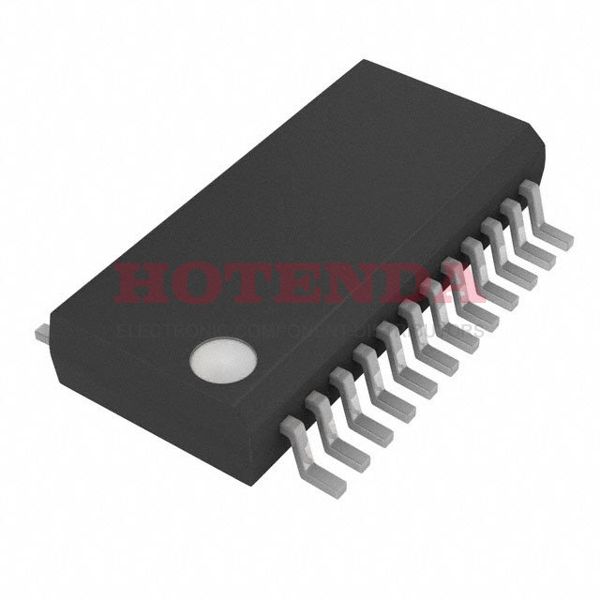

LC72121V-TLM-E Overview
This clock IC is packaged using the Tape & Reel (TR) method. The 24-LSSOP (0.220, 5.60mm Width) package includes this clock generator. In it, there are 24 terminations to be found. A clock generator's input is called Crystal and it is designed as the input for this clock generator. For full access to the electronic component's capabilities, 1 circuits are implemented. A clock-based RF synthesizer that provides a max frequency of 160MHz is available. With the Surface Mount, it is easy to install this electric component on the panel. Clock generators can take up to 3.6V of power as a maximum supply voltageThis frequency synthesizer requires a supply voltage above 2.7V to be safe. This clock PLL works with a supply voltage of 2.7V~3.6V. Using the test statistics, it is estimated that the ambient temperature should be set to -40°C~85°C. A frequency synthesizer which is compatible with the Clock logic levels is presented here. The device is usually classified as a type of PLL or Frequency Synthesis Circuits device. PLL FREQUENCY SYNTHESIZER-RF synthesizers are analog integrated circuits that can be classified as analog ICs. It is recommended that the time clock generator's maximum supply current does not exceed 6mA.
LC72121V-TLM-E Features
Available in the 24-LSSOP (0.220, 5.60mm Width)
LC72121V-TLM-E Applications
There are a lot of ON Semiconductor
LC72121V-TLM-E Clock Generators applications.
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
