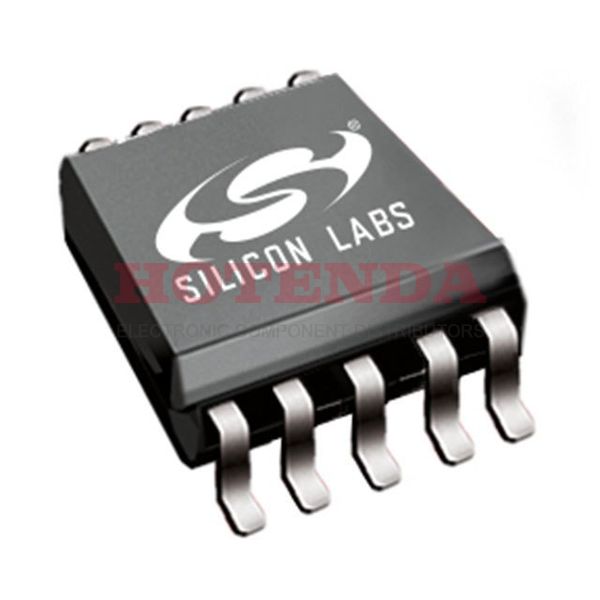

SI5350A-B05042-GT Overview
The Tube method is used for packaging clock ICs. The 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) package contains this clock generator. There are 10 terminations found in the file. Clock generator ics require a voltage of 1.8V. PLL clock is mounted in the way of Surface Mount. It would take a maximum supply voltage of 1.89V to operate this time clock generator. This RF synthesizer has CLOCK GENERATOR, PROCESSOR SPECIFIC uPs, uCs, and peripheral ICs. This frequency synthesizer requires a supply voltage above 1.71V to be safe. In addition, the PLL may cause ha85°Cards once the temperature is set higher than 85°C. For the clock, clock generator's output frequency should not exceed 200MHz. Temperatures below -40°C could result in this clock PLL failing to start up. The RF synthesizer features ALSO OPERATES AT 2.5V AND 3.3V NOMINAL SUPPLY for improved clock signal output.
SI5350A-B05042-GT Features
Available in the 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Supply voltage of 1.8V
Output clock frequency (Max) of 200MHz
SI5350A-B05042-GT Applications
There are a lot of Silicon Labs SI5350A-B05042-GT Clock Generators applications.
- Integrated phase noise in aerospace systems
- Clock generation systems
- Digital logic circuits
- Space communucation
- Camera systems
- Microwave backhaul IF
- Jitter reduction
- Time to digital converters
- Ultrasound diagnosis
- Smartphones
