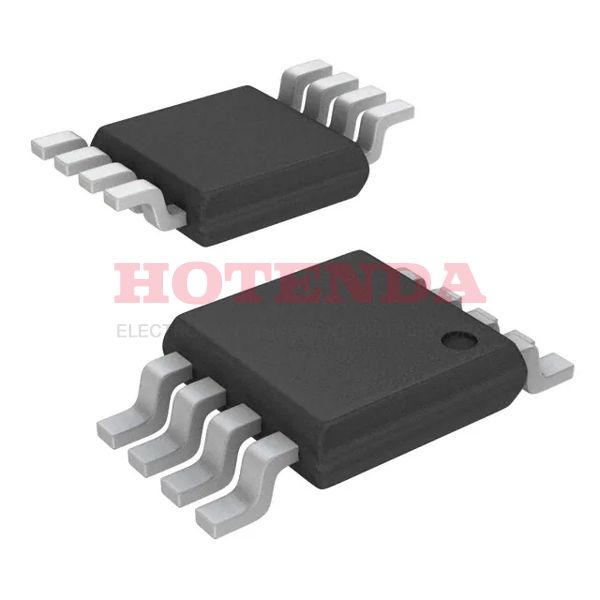

ICS570GI-01T Overview
The Tape & Reel (TR) method is used for packaging clock ICs. The 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) package contains this clock generator. The input of this clock generator is designed to be Clock. 1 circuits are implemented to access the electronic component's full performance. It provides a maximum frequency of 55MHz. A Surface Mount-shaped electrical component makes it convenient to mount on a panel. Clock generators should operate with the voltage supply of 3.15V~3.45V. Based on the test statistics, an ambient temperature of -40°C~85°C should be set. A frequency synthesizer which is compatible with the CMOS logic levels is presented here. This is an electronic part that can be classified as a Zero Delay Buffer, Spread Spectrum Clock Generator, Zero Delay Buffer in this case. You can find related electrical components to the base part number ICS570-01.
ICS570GI-01T Features
Available in the 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
ICS570GI-01T Applications
There are a lot of Renesas Electronics America Inc. ICS570GI-01T Clock Generators applications.
- Local oscillator source in receiver
- Threshold extension
- Coherent carrier tracking
- Signal demodulation
- Clock signals to the high-speed Digital RF circuits
- Signal frequency synthesis circuits
- Sampling clocks for ADC and DAC
- Microprocessor clock multipliers
- Automatic control
- Radio receivers
