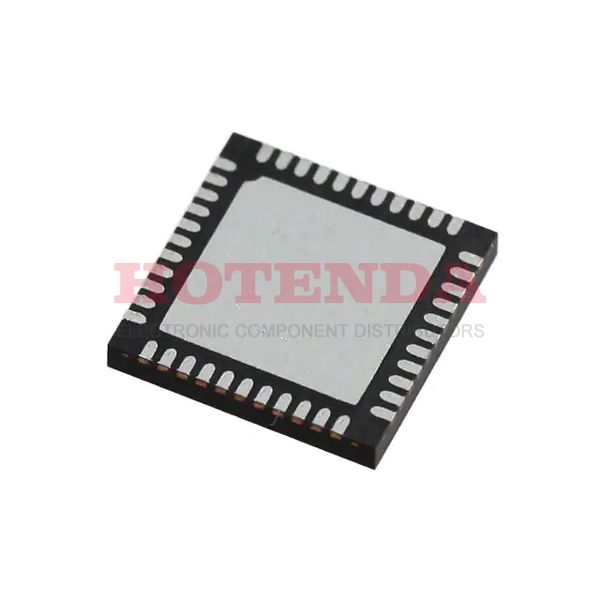

SI5344A-B-GMR Overview
The Tape & Reel (TR) method is used for packaging clock ICs. As part of the 44-VFQFN Exposed Pad package, this clock generator is embedded. This clock generator ic can sustain 260 degrees of temperature during reflowing. There are 44 terminations found in this file. To operate this time clock generator, 1.8V voltage should be applied. In this clock generator, LVCMOS, LVDS, LVPECL, Crystal is used as the input to the clock. For a full understanding of the electronic part's performance, 1 circuits are implemented. An up to 712.5MHz frequency is provided by this clock-based RF synthesizer. The Surface Mount allows the electrical component to be installed conveniently on the panel. CLOCK GENERATOR, PROCESSOR SPECIFIC uPs/uCs/peripheral ICs are incorporated in this digital clock generator. In terms of supply voltage, RF synthesizer works with 1.71V~3.47V. Test statistics estimate a temperature of -40°C~85°C, which should be set as the ambient temperature. The frequency synthesizer in this product is compatible with all levels of CML, HCSL, LVCMOS, LVDS, LVPECL logic. There is a ALSO REQUIRES 3.3V SUPPLY feature on this frequency generator in order to produce a better clock signal.
SI5344A-B-GMR Features
Available in the 44-VFQFN Exposed Pad
Supply voltage of 1.8V
SI5344A-B-GMR Applications
There are a lot of Silicon Labs
SI5344A-B-GMR Clock Generators applications.
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
- Infotainment systems
