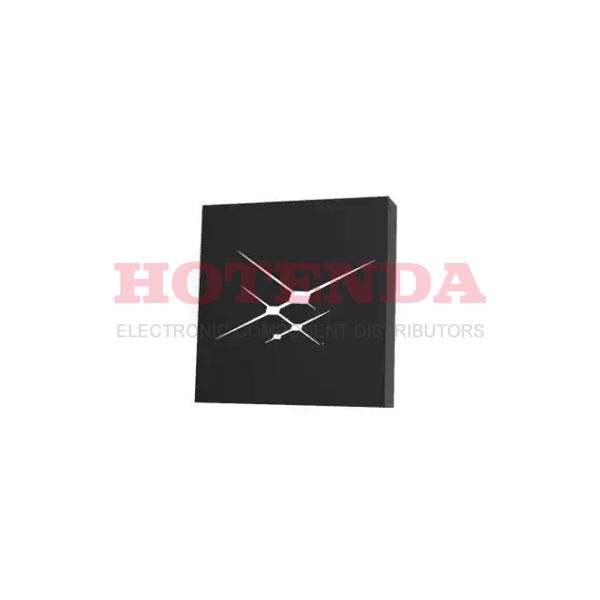

SI5341B-D11041-GMR Overview
This clock IC is packaged using the Tape & Reel (TR) method. This clock generator is embedded in the 64-VFQFN Exposed Pad package. The peak reflow temperature (Cel) amounts to 260 to be essentially indestructible. In it, there are 64 terminations to be found. Basically, a voltage of 1.8V should be applied to this electronic frequency generator. This Clock PLL will be fed by LVCMOS, LVDS, LVPECL, Crystal as its input. There are 1 circuits implemented in order to achieve full performance from this electronic part. 350MHz is the maximal value for normal operation. Surface Mount-slots make it easy to mount this electronic component on panels. Clock generators should operate with the voltage supply of 1.71V~1.89V 3.14V~3.47V. Using the test statistics, we estimate that the ambient temperature should be -40°C~85°C TA. The frequency synthesizer in this product is compatible with all levels of CML, HCSL, LVCMOS, LVDS, LVPECL logic. This electronic component is usually classified as a Clock Generator component.
SI5341B-D11041-GMR Features
Available in the 64-VFQFN Exposed Pad
Supply voltage of 1.8V
SI5341B-D11041-GMR Applications
There are a lot of Silicon Labs SI5341B-D11041-GMR Clock Generators applications.
- Space communucation
- 10 Gigabit Ethernet
- VSAT (Small Ground Satellite Station)
- Laptops
- Threshold extension
- Test equipment
- Frequency Modulation (FM) stereo decoders
- CB radios
- Signal demodulation
- Symbol synchronization
