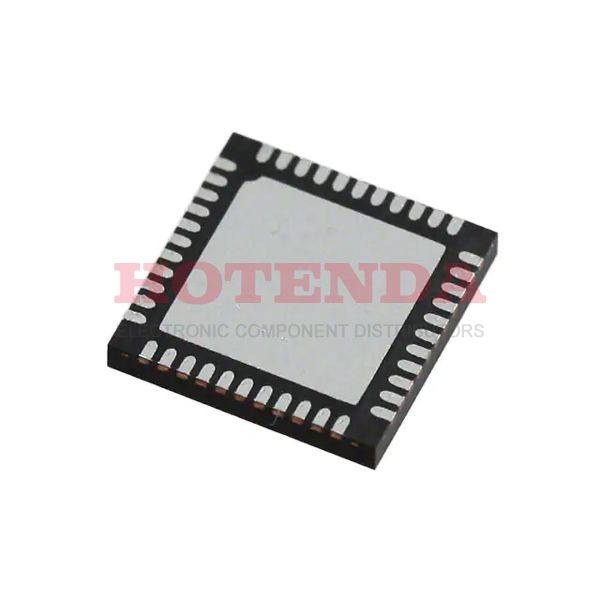

SI5340C-B-GM Overview
As a clock IC, it uses the Tray package. 44-VFQFN Exposed Pad contains this Clock PLL. When reflowed, this frequency generator can withstand a maximum temperature of NOT SPECIFIED. As a result, frequency synthesizers can be found to contain 44 terminations. For this clock generator ic, a voltage of 1.8V is required. This Clock PLL will be fed by LVCMOS, LVDS, LVPECL, Crystal as its input. There are 1 circuits implemented in order to achieve full performance from this electronic part. Providing a maximum frequency of 712.5MHz, this clock-based RF synthesizer is suitable for a variety of applications. The Surface Mount allows this electrical component to be easily installed on the panel. This RF synthesizer has CLOCK GENERATOR, PROCESSOR SPECIFIC uPs, uCs, and peripheral ICs. There are 1.71V~3.47V different supply voltages that can be provided for this RF synthesizer. Based on test statistics, ambient temperature should be set at -40°C~85°C. I would like to present to you a frequency synthesizer that is compatible with CML, HCSL, LVCMOS, LVDS, LVPECL logic levels. Clock Generators-type frequency generators are usually classified as this type. In order to provide better clock signal output, this frequency synthesizer is equipped with ALSO REQUIRES 3.3V SUPPLY.
SI5340C-B-GM Features
Available in the 44-VFQFN Exposed Pad
Supply voltage of 1.8V
SI5340C-B-GM Applications
There are a lot of Silicon Labs
SI5340C-B-GM Clock Generators applications.
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
- Infotainment systems
- Medical equipment
- Multi-function printers
