Name: C8051F122R
Brand: Silicon Labs
SKU: C8051F122R
Availability: InStock

new-10%

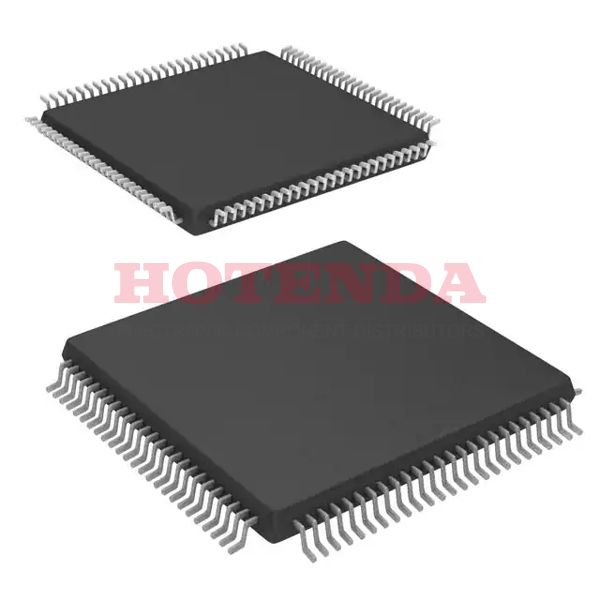

C8051F122R

Manufacturer part number:C8051F122R

Manufacturer:Silicon Labs

Description:128KB 128K x 8 FLASH 8051 8-Bit Microcontroller C8051F12x Series C8051F12 100 Pin 100MHz 3.3V 100-TQFP

Case Package:SOT-23

Datasheet:C8051F122R Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	100-TQFP
Surface Mount	YES
Number of Pins	100
Operating Temperature	-40°C~85°C TA
Packaging	Cut Tape (CT)
Series	C8051F12x
Published	2000
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
ECCN Code	3A001.A.3
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Frequency	100MHz
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	C8051F12
Pin Count	100
Qualification Status	Not Qualified
Supply Voltage-Min (Vsup)	3V
Number of Channels	6
Interface	2-Wire, EBI/EMI, I2C, SMBus, SPI, UART, USART
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	64
RAM Size	8.25K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	8051
Peripherals	Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	128KB 128K x 8
Connectivity	EBI/EMI, SMBus (2-Wire/I2C), SPI, UART/USART
Bit Size	8
Data Converter	A/D 8x8b, 8x10b; D/A 2x12b
Access Time	100 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	YES
Address Bus Width	16
Length	14mm
Height Seated (Max)	1.2mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

C8051F122R Product Details

C8051F122R Overview

There is a 100-TQFP package available. The board has 64 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. C8051F12x-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 128KB 128K x 8. Powered by a 8051 Core processor. Microcontroller's a MICROCONTROLLER uPs/uCs/Peripheral IC. IC Chip terminations are 100. As a result, this Microcontroller comes with a 8-bit size. Input voltage for the chip is 3.3V volts. A total of NO DMA channels are available. This IC part has a memory size of 128kB. There are a number of alternatives to the base part number C8051F12 that you can find. Performing well when operated at frequency 100MHz can be achieved. Using YES PWM channels, the device works. On the chip, there are 100 pins that can be accessed. The pins counted are 100.
