Name: DSPIC33EP512MC204-E/TL
Brand: Microchip Technology
SKU: DSPIC33EP512MC204-E/TL
Availability: InStock

new-10%

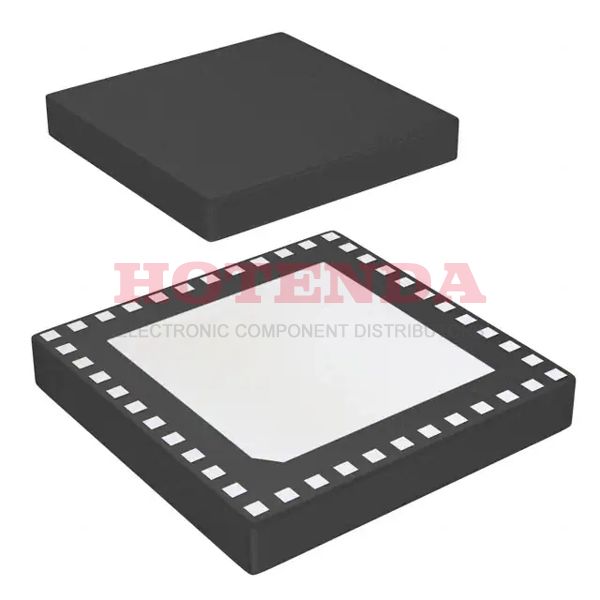

DSPIC33EP512MC204-E/TL

Manufacturer part number:DSPIC33EP512MC204-E/TL

Manufacturer:Microchip Technology

Description:512KB 170K x 24 FLASH dsPIC 16-Bit Microcontroller Automotive, AEC-Q100, dsPIC™ 33EP Series DSPIC33EP512MC204 44 Pin 3.3V 44-VFTLA Exposed Pad

Case Package:SOT-23

Datasheet:DSPIC33EP512MC204-E/TL Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Mounting Type	Surface Mount
Package / Case	44-VFTLA Exposed Pad
Surface Mount	YES
Number of Pins	44
Supplier Device Package	44-VTLA (6x6)
Number of Terminals	44
Data Converters	A/D 9x10b/12b
Package	Tube
Base Product Number	DSPIC33EP512MC204
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	35
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	Automotive, AEC-Q100, dsPIC™ 33EP
Published	2013
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
ECCN Code	3A001.A.3
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
HTS Code	8542.31.00.01
Terminal Position	BOTTOM
Terminal Form	BUTT
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	DSPIC33EP512MC204
JESD-30 Code	S-XBCC-B44
Operating Supply Voltage	3.6V
Temperature Grade	AUTOMOTIVE
Interface	CAN, I2C, IrDA, LIN, SPI, UART, USART
Memory Size	512kB
Oscillator Type	Internal
Number of I/O	35
Nominal Supply Current	30μA
Speed	60 MIPs
RAM Size	24K x 16
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT
Clock Frequency	60MHz
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	512KB 170K x 24
Connectivity	I2C, IrDA, LINbus, QEI, SPI, UART/USART
Bit Size	16
Data Converter	A/D 9x10b/12b
Has ADC	YES
DMA Channels	YES
Data Bus Width	16b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1 mm
Number of Timers/Counters	12
ROM (words)	174762
EEPROM Size	--
On Chip Program ROM Width	24
Screening Level	AEC-Q100
RAM (bytes)	49152
ROM Programmability	FLASH
Length	6mm
Height Seated (Max)	1mm
Width	6 mm
RoHS Status	ROHS3 Compliant

DSPIC33EP512MC204-E/TL Product Details

DSPIC33EP512MC204-E/TL Overview
