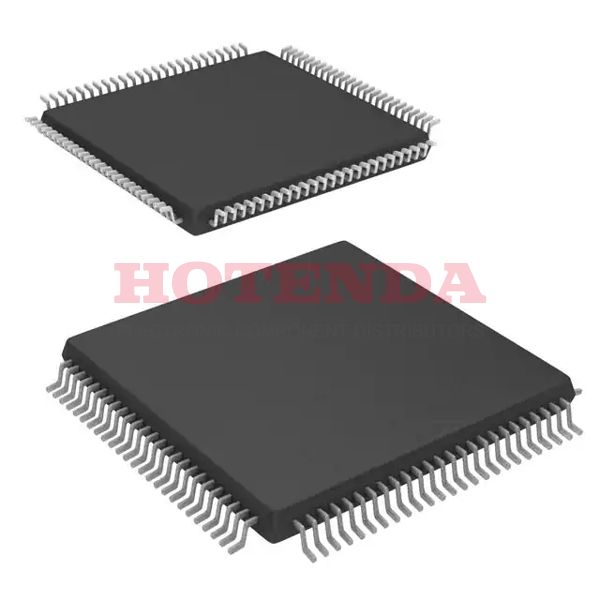

Name: C8051F040R
Brand: Silicon Labs
SKU: C8051F040R
Availability: InStock

new-10%

C8051F040R

Manufacturer part number:C8051F040R

Manufacturer:Silicon Labs

Description:64KB 64K x 8 FLASH 8051 8-Bit Microcontroller C8051F04x Series C8051F04 100 Pin 25MHz 100-TQFP

Case Package:SOT-23

Datasheet:C8051F040R Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	100-TQFP
Number of Pins	100
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	C8051F04x
Published	2000
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Frequency	25MHz
Base Part Number	C8051F04
Number of Channels	6
Interface	2-Wire, CAN, EBI/EMI, I2C, SMBus, SPI, UART, USART
Memory Size	64kB
Oscillator Type	Internal
Number of I/O	64
RAM Size	4.25K x 8
Voltage - Supply (Vcc/Vdd)	2.7V~3.6V
Core Processor	8051
Peripherals	Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	64KB 64K x 8
Connectivity	CANbus, EBI/EMI, SMBus (2-Wire/I2C), SPI, UART/USART
Data Converter	A/D 8x8b, 13x12b; D/A 2x10b, 2x12b
Access Time	25 μs
Data Bus Width	8b
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

C8051F040R Product Details

C8051F040R Overview

100-TQFP-packages are available. There are 64 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the C8051F04x series. This program memory has a size of 64KB 64K x 8, which indicates what the size of the program memory is. 8051 Core processors are used in MCU. The part has a memory size of 64kB. The base part number C8051F04 provides alternatives. This device is extremely efficient when operated at a frequency of 25MHz. In this chip, 100 pins can be accessed.
