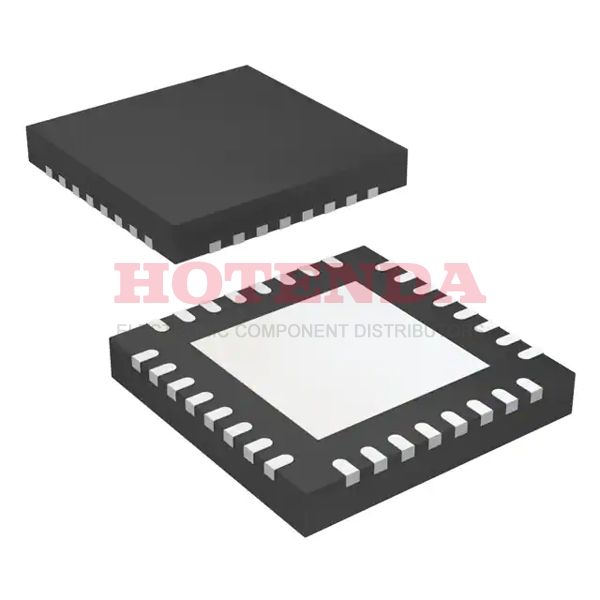

Name: MSP430F2112IRTVR
Brand: Texas Instruments
SKU: MSP430F2112IRTVR
Availability: InStock

new-10%

MSP430F2112IRTVR

Manufacturer part number:MSP430F2112IRTVR

Manufacturer:Texas Instruments

Description:2KB 2K x 8 + 256B FLASH MSP430 16-Bit Microcontroller MSP430F2xx Series 32 Pin 16MHz 32-WFQFN Exposed Pad

Case Package:SOT-23

Datasheet:MSP430F2112IRTVR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	32-WFQFN Exposed Pad
Surface Mount	YES
Number of Pins	32
Operating Temperature	-40°C~85°C TA
Packaging	Cut Tape (CT)
Series	MSP430F2xx
JESD-609 Code	e4
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	32
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
Frequency	16MHz
Pin Count	32
Interface	I2C, IrDA, LIN, SCI, SPI, UART, USART
Memory Size	2kB
Oscillator Type	Internal
Number of I/O	24
RAM Size	256 x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	MSP430
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	2KB 2K x 8 + 256B
Connectivity	I2C, IrDA, LINbus, SCI, SPI, UART/USART
Bit Size	16
Data Converter	A/D 8x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	16b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	2
Number of A/D Converters	8
Number of Programmable I/O	24
Number of UART Channels	1
RAM (bytes)	256
Length	5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MSP430F2112IRTVR Product Details

MSP430F2112IRTVR Overview

This Microcontroller comes in a 32-WFQFN Exposed Pad package. This Microcontroller has 24 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 16-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in MSP430F2xx Series. The size of the program memory of Microcontroller is 2KB 2K x 8 + 256B. MCU is powered by MSP430 Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 32 terminals. Microcontroller comes with 16 bit size. MCU chip has NO DMA channels. The part owns 2kB memory size. MCU's frequency is 16MHz. The device works in YES PWM channels. The pin number of the component remains 32. It has 2 timers/counters. It counts 32 pins. It programs in 24 Programmable I/O. It enjoys 1 UART channels. The device has a set of 8 A/D converters.
