Name: TSW-110-14-T-D
Brand: Samtec Inc.
SKU: TSW-110-14-T-D
Price: 1.20000 USD
Availability: InStock

new-10%

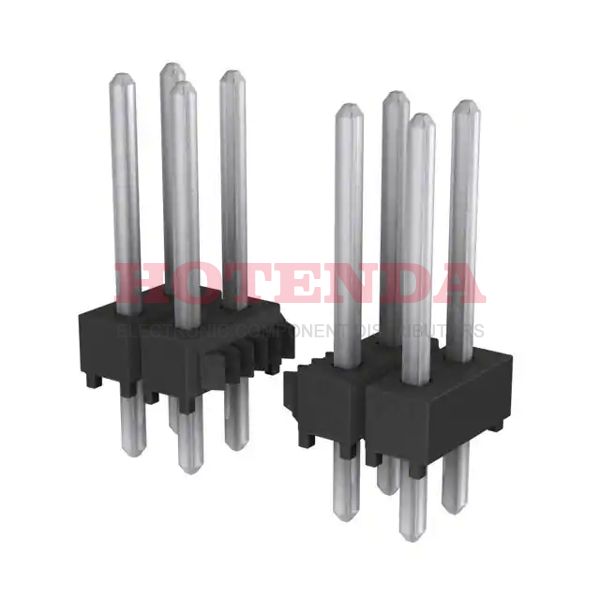

TSW-110-14-T-D

Manufacturer part number:TSW-110-14-T-D

Manufacturer:Samtec Inc.

Description:TSW-110-14-T-D datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:TSW-110-14-T-D Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	0 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT)
Housing Material	Polyester
Operating Temperature	-55°C~105°C
Packaging	Bulk
Published	2005
Series	TSW
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	20
Number of Rows	2
Gender	Male
Additional Feature	E.L.P.
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Straight
Depth	5.08mm
Insulation Height	0.100 2.54mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.110 2.79mm
Shrouding	Unshrouded
Number Of PCB Rows	2
Lead Pitch	2.54mm
Contact Length - Mating	0.320 8.13mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.1 inch
UL Flammability Code	94V-0
Housing Color	Black
Overall Contact Length	0.530 13.46mm
Mating Contact Pitch	0.1 inch
Max Voltage Rating (AC)	550V
Max Current Rating	7.6A
Length	25.4mm
Width	5.08mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TSW-110-14-T-D Product Details

TSW-110-14-T-D Overview

This product is packaged in a Header box.Mounting type Through Hole is assigned to the device.A Bulk case is used for packaging.A member of the TSW Series.Additionally, there are other features, such as E.L.P..You've got Through Hole mounted on the part.Operating temperature is -55°C~105°C.
