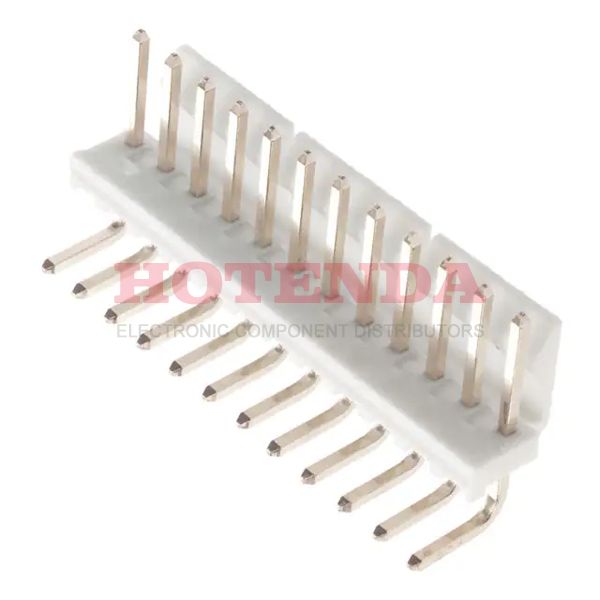

Name: 0026605120
Brand: Molex
SKU: 0026605120
Price: 2.27000 USD
Availability: InStock

new-10%

0026605120

Manufacturer part number:0026605120

Manufacturer:Molex

Description:0026605120 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0026605120 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	BRASS
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyester, Glass Filled
Packaging	Bulk
Series	KK 41792
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	12
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows	1
Additional Feature	POLARIZED
Fastening Type	Friction Lock
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Terminal Pitch	3.96mm
Insulation Height	0.394 10.00mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.156 3.96mm
Insulation Color	Natural
Contact Length - Post	0.156 3.96mm
Shrouding	Shrouded - 1 Wall
Contact Length - Mating	0.450 11.43mm
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	60.0μin 1.52μm
Contact Finish Thickness - Post	60.0μin 1.52μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0026605120 Product Details

0026605120 Overview

The product comes in a package of Header.The mounting type of the device is Through Hole, Right Angle.Packaged in a Bulk case.The product belongs to the KK 41792 Series.To name a few, there is also POLARIZED.This device may be used for the purpose of Automotive, General Purpose, Industrial, Medical, Telecommunications.
