Name: TSM-115-01-T-SH-A-P-TR
Brand: Samtec Inc.
SKU: TSM-115-01-T-SH-A-P-TR
Price: 2.68000 USD
Availability: InStock

new-10%

TSM-115-01-T-SH-A-P-TR

Manufacturer part number:TSM-115-01-T-SH-A-P-TR

Manufacturer:Samtec Inc.

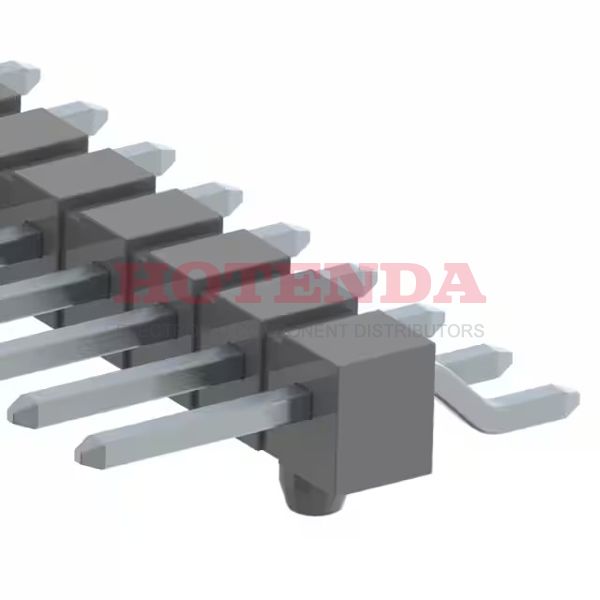

Description:TSM Series 1-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount, Right Angle Tin Liquid Crystal Polymer (LCP) 15-Position Board to Board or Cable 0.120 3.05mm Height

Case Package:SOT-23

Datasheet:TSM-115-01-T-SH-A-P-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mounting Type	Surface Mount, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~105°C
Packaging	Tape & Reel (TR)
Series	TSM
Published	2016
Feature	Board Guide, Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Header
Number of Positions	15
Number of Rows	1
Gender	Male
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Type	Male Pin
Pitch	2.54mm
Insulation Height	0.120 3.05mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Shrouding	Unshrouded
Number of Contacts	15
Contact Finish - Post	Tin
Contact Length - Mating	0.230 5.84mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TSM-115-01-T-SH-A-P-TR Product Details

TSM-115-01-T-SH-A-P-TR Overview

A Header package is included with it.Its mounting type is Surface Mount, Right Angle.Packaging is performed using a Tape & Reel (TR) case.It is part of the TSM Series of products.A number of features make it more powerful because of its Board Guide, Pick and Place feature.There is no operating temperature for the device.
