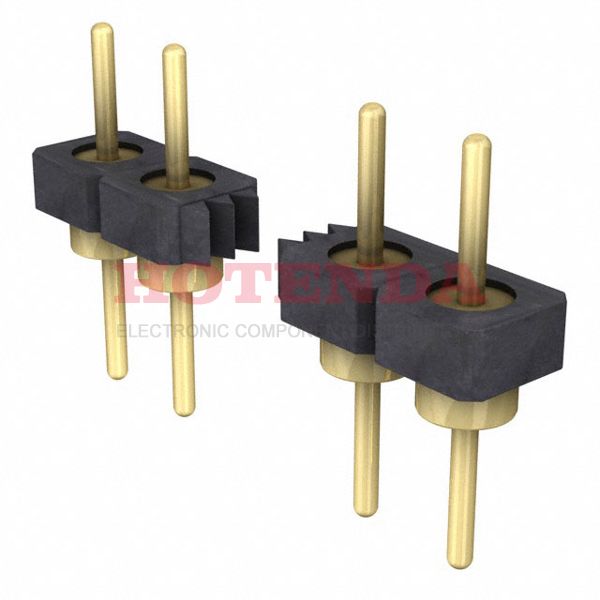

Name: BBL-110-G-F
Brand: Samtec Inc.
SKU: BBL-110-G-F
Price: 4.74000 USD
Availability: InStock

new-10%

BBL-110-G-F

Manufacturer part number:BBL-110-G-F

Manufacturer:Samtec Inc.

Description:BBL-110-G-F datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:BBL-110-G-F Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Brass, Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polyester
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2007
Series	BBL
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	10
Number of Rows	1
Gender	Male
Additional Feature	LOW PROFILE
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Straight
Depth	2.54mm
Insulation Height	0.085 2.15mm
Style	Board to Board
Number of Positions Loaded	All
Current Rating	1A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Contact Length - Post	0.125 3.18mm
Shrouding	Unshrouded
Number Of PCB Rows	1
Contact Finish - Post	Nickel
Contact Length - Mating	0.122 3.10mm
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Overall Contact Length	0.332 8.43mm
Length	25.4mm
Plating Thickness	20μin
Contact Finish Thickness - Mating	20.0μin 0.51μm
Contact Finish Thickness - Post	50.0μin 1.27μm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

BBL-110-G-F Product Details

BBL-110-G-F Overview

A Header packaging is included.Mounting type Through Hole is assigned to the device.A Bulk case is used for packaging.BBL Series product.Furthermore, there are other features available, such as LOW PROFILE, to name a few.Through Hole mounts the part.Devices operate at -55°C~125°C operating temperatures.
