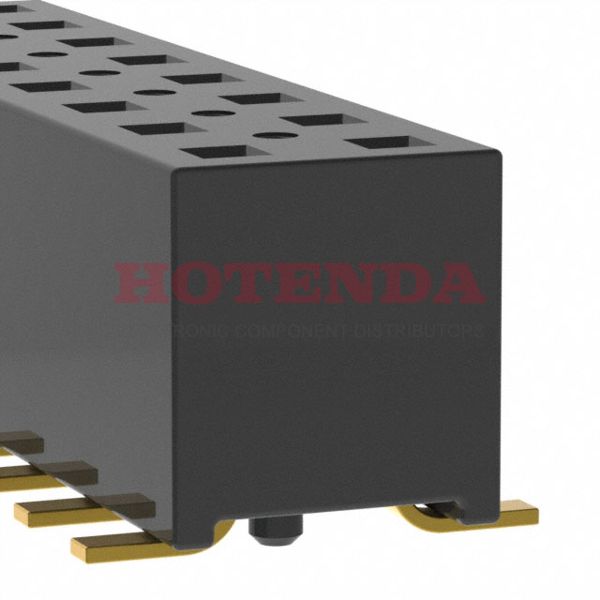

Name: TLE-112-01-G-DV-A-TR
Brand: Samtec Inc.
SKU: TLE-112-01-G-DV-A-TR
Availability: InStock

new-10%

TLE-112-01-G-DV-A-TR

Manufacturer part number:TLE-112-01-G-DV-A-TR

Manufacturer:Samtec Inc.

Description:TLE-112-01-G-DV-A-TR datasheet pdf and Rectangular Connectors - Headers, Receptacles, Female Sockets product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:TLE-112-01-G-DV-A-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2016
Series	TLE
JESD-609 Code	e4
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle, Pass Through
Number of Positions	24
Number of Rows	2
Gender	Female
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.2A per Contact
Total Number of Contacts	24
Insulation Height	0.177 4.50mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Finish Thickness - Mating	10.0μin 0.25μm
RoHS Status	ROHS3 Compliant

TLE-112-01-G-DV-A-TR Product Details

TLE-112-01-G-DV-A-TR Overview

The product comes in a package of Receptacle, Pass Through.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Among the products in the TLE Series, it is one of the most popular.A number of advantages can be derived from its Board Guide feature.This device runs at -55°C~125°C operating temperature.
