Name: SSW-108-22-F-D-RA
Brand: Samtec Inc.
SKU: SSW-108-22-F-D-RA
Price: 3.41000 USD
Availability: InStock

new-10%

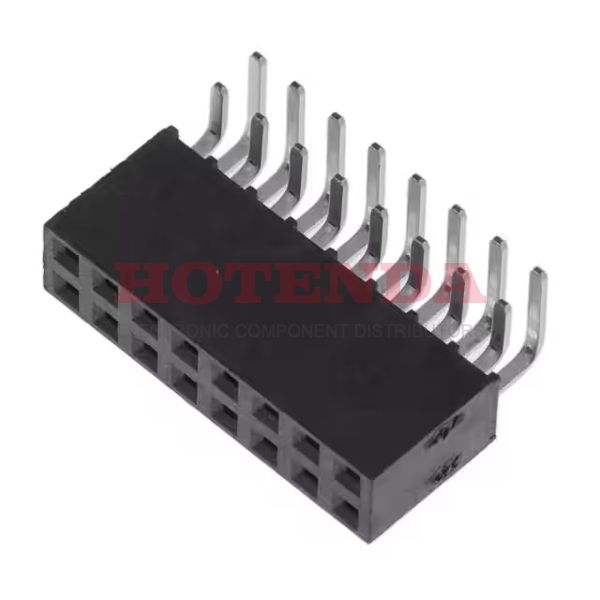

SSW-108-22-F-D-RA

Manufacturer part number:SSW-108-22-F-D-RA

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeThrough Hole, Right AngleBulkGoldLiquid Crystal Polymer (LCP)16 PositionsForked

Case Package:SOT-23

Datasheet:SSW-108-22-F-D-RA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	SSW
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	16
Number of Rows	2
Gender	Female
Additional Feature	TIGER BUY CONTACT
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Voltage - Rated DC	655V
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	5.7A per Contact
Insulation Height	0.195 4.95mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Voltage - Rated AC	465V
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.100 2.54mm
Lead Pitch	2.54mm
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Lead Length	2.54mm
Contact Finish Thickness - Mating	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SSW-108-22-F-D-RA Product Details

SSW-108-22-F-D-RA Overview

Packaging is in the form of Receptacle.Through Hole, Right Angle is the mounting type for the device.The product is packaged in a Bulk case.A member of the SSW Series.Besides that, there's also TIGER BUY CONTACT, to name a few.By Through Hole it's mounted.Operating temperature is set to -55°C~125°C.
