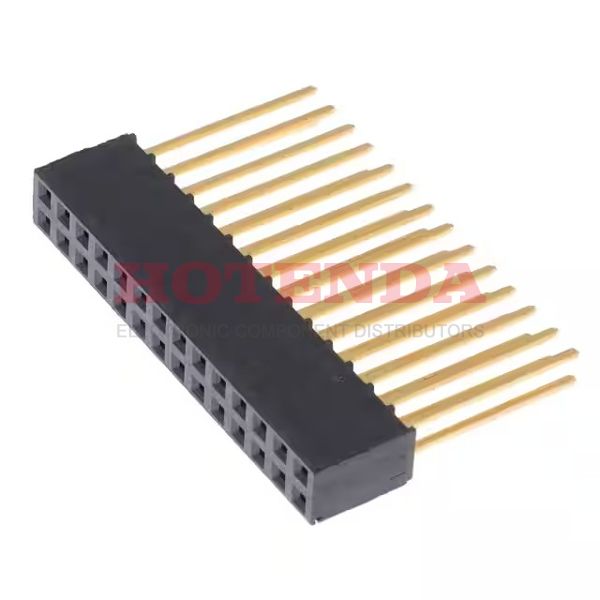

SSQ-114-04-G-D

  • SSQ-114-04-G-D - 2 RowsReceptacleSolderPhosphor BronzeThrough HoleBulkGoldLiquid Crystal Polymer (LCP)28 PositionsForked
  • SSQ-114-04-G-D - 2 RowsReceptacleSolderPhosphor BronzeThrough HoleBulkGoldLiquid Crystal Polymer (LCP)28 PositionsForked

SSQ-114-04-G-D

SSQ-114-04-G-D

Samtec Inc.

2 RowsReceptacleSolderPhosphor BronzeThrough HoleBulkGoldLiquid Crystal Polymer (LCP)28 PositionsForked

SOT-23

SSQ-114-04-G-D Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 3 Weeks
Contact MaterialPhosphor Bronze
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Operating Temperature-55°C~125°C
PackagingBulk
Series SSQ
JESD-609 Code e4
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Receptacle
Number of Positions 28
Number of Rows 2
Gender Female
Fastening TypePush-Pull
Voltage - Rated DC 655V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.3A per Contact
Orientation Straight
Depth 4.95mm
Insulation Height 0.335 8.51mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Voltage - Rated AC 465V
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.584 14.83mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Resistance 10mOhm
Max Voltage Rating (AC) 550V
Max Current Rating 7.6A
Length 36.07mm
Contact Finish Thickness - Mating 20.0μin 0.51μm
Contact Finish Thickness - Post 3.00μin 0.076μm
Material Flammability Rating UL94 V-0
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:1069 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$6.799458$6.799458
10$6.414583$64.14583
100$6.051494$605.1494
500$5.708956$2854.478
1000$5.385808$5385.808

SSQ-114-04-G-D Product Details

SSQ-114-04-G-D Overview


The packaging is Receptacle.This device has a Through Hole mounting type.A Bulk case is used to package the product.The product is a member of the SSQ Series.It runs at -55°C~125°C Operating Temperature.

SSQ-114-04-G-D Features


SSQ series

SSQ-114-04-G-D Applications


There are a lot of Samtec Inc. SSQ-114-04-G-D Rectangular Connectors applications.

  • Transportation
  • Telecommunications
  • Communication
  • Measuring & Control Technology
  • Industrial Automation
  • Datacom
  • Instrumentation
  • Medical technology
  • Data Technology
  • Automotive Electronics
