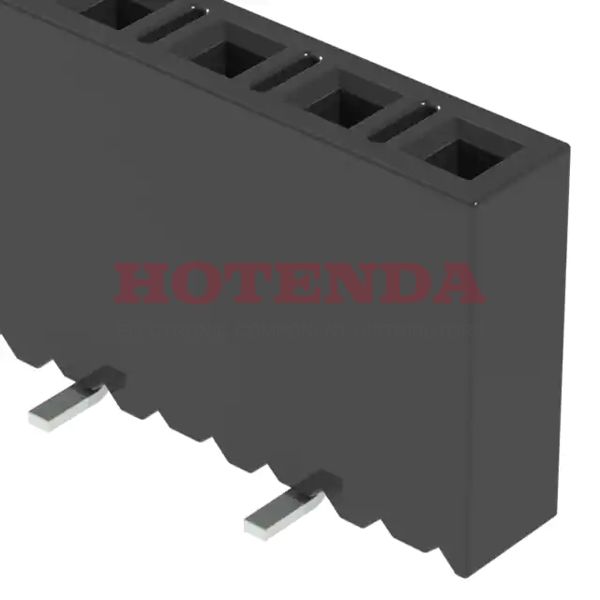

Name: SSM-114-L-SV-K
Brand: Samtec Inc.
SKU: SSM-114-L-SV-K
Price: 4.25000 USD
Availability: InStock

new-10%

SSM-114-L-SV-K

Manufacturer part number:SSM-114-L-SV-K

Manufacturer:Samtec Inc.

Description:1 RowsReceptacle, Pass ThroughSolderPhosphor BronzeSurface MountBulkGoldLiquid Crystal Polymer (LCP)14 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SSM-114-L-SV-K Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	SSM
JESD-609 Code	e3
Feature	Pick and Place
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle, Pass Through
Number of Positions	14
Number of Rows	1
Gender	Female
Voltage - Rated	405VAC 572VDC
Additional Feature	E.L.P., TIGER CLAW
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	5.2A per Contact
Total Number of Contacts	14
Terminal Pitch	2.54mm
Insulation Height	0.290 7.37mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	10.0μin 0.25μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SSM-114-L-SV-K Product Details

SSM-114-L-SV-K Overview

Packaging is in the form of Receptacle, Pass Through.Surface Mount is the mounting type for the device.An Bulk case is utilized for packaging the product.A member of the SSM Series.Moreover, there are a number of other features, including E.L.P., TIGER CLAW, to name just a few.It is more powerful in many ways due to its Pick and Place feature.There is no operating temperature for the device.
