Name: SS-105-T-2
Brand: Samtec Inc.
SKU: SS-105-T-2
Price: 1.02000 USD
Availability: InStock

new-10%

SS-105-T-2

Manufacturer part number:SS-105-T-2

Manufacturer:Samtec Inc.

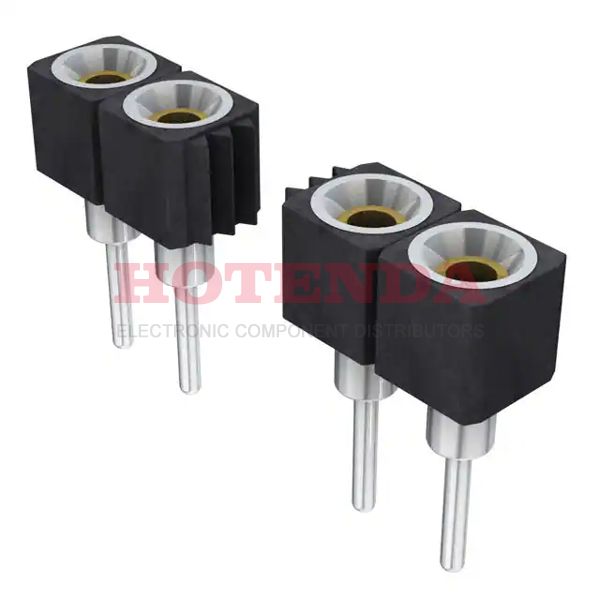

Description:1 Rows Receptacle Solder Beryllium Copper Through Hole Bulk Gold Polybutylene Terephthalate (PBT), Glass Filled 5 Positions Female Socket

Case Package:SOT-23

Datasheet:SS-105-T-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	0 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Housing Material	Polyester
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2008
Series	SS
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	5
Number of Rows	1
Gender	Female
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Straight
Depth	2.54mm
Insulation Height	0.300 7.62mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Contact Length - Post	0.125 3.18mm
Number Of PCB Rows	1
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Housing Color	Black
Rated Current (Signal)	1A
Contact Resistance	10mOhm
Max Current Rating	1A
Polarization Key	POLARIZED HOUSING
Insertion Force-Max	4.448 N
Length	12.7mm
Width	2.54mm
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SS-105-T-2 Product Details

SS-105-T-2 Overview

Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the SS Series, it can be found in this category.In this case, Through Hole mounts the part.The device is operating at -55°C~125°C Operating Temperature.
