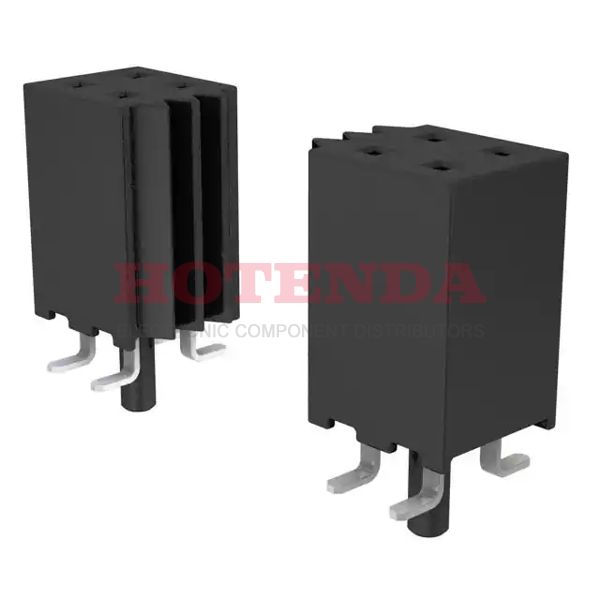

Name: SQW-107-01-F-D-VS-A-K
Brand: Samtec Inc.
SKU: SQW-107-01-F-D-VS-A-K
Price: 4.41000 USD
Availability: InStock

new-10%

SQW-107-01-F-D-VS-A-K

Manufacturer part number:SQW-107-01-F-D-VS-A-K

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTubeGoldLiquid Crystal Polymer (LCP)14 PositionsForked

Case Package:SOT-23

Datasheet:SQW-107-01-F-D-VS-A-K Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	SQW
JESD-609 Code	e3
Feature	Board Guide, Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	14
Number of Rows	2
Gender	Female
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.8A per Contact
Total Number of Contacts	14
Insulation Height	0.300 7.62mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Reach Compliance Code	not_compliant
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Voltage - Rated AC	500V
Row Spacing - Mating	0.079 (2.00mm)
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SQW-107-01-F-D-VS-A-K Product Details

SQW-107-01-F-D-VS-A-K Overview

It comes in Receptacle packaging.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tube.This product is from the SQW Series.Its Board Guide, Pick and Place feature renders it more powerful in many ways.The device is operating at -55°C~125°C Operating Temperature.
