Name: SL-108-T-19
Brand: Samtec Inc.
SKU: SL-108-T-19
Price: 3.83000 USD
Availability: InStock

new-10%

SL-108-T-19

Manufacturer part number:SL-108-T-19

Manufacturer:Samtec Inc.

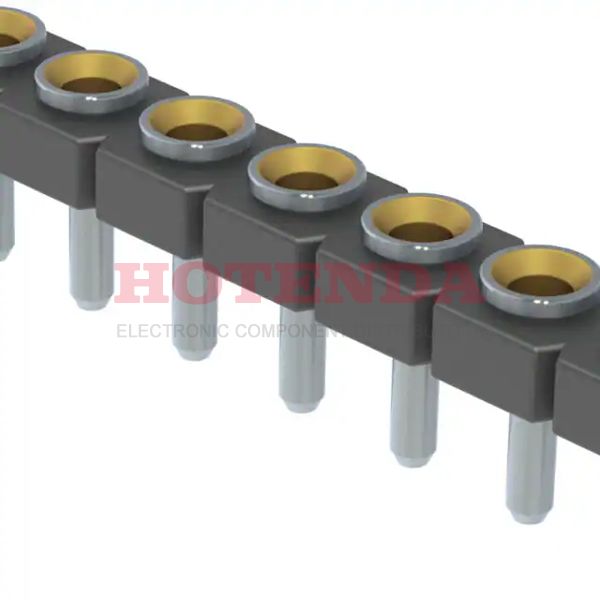

Description:1 RowsReceptacleSolderBeryllium CopperThrough HoleBulkGoldLiquid Crystal Polymer (LCP)8 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SL-108-T-19 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Beryllium Copper
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polyester
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2013
Series	SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	8
Number of Rows	1
Gender	Female
Additional Feature	LOW PROFILE
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Straight
Depth	2.54mm
Insulation Height	0.050 1.27mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Contact Length - Post	0.082 2.08mm
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Rated Current (Signal)	1A
Contact Resistance	10mOhm
Max Current Rating	1A
Polarization Key	POLARIZED HOUSING
Length	20.32mm
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

SL-108-T-19 Product Details

SL-108-T-19 Overview

A Receptacle package is included with it.Through Hole is the mounting type of the device.To package the product, a Bulk case is used.SL Series product.Additionally, there are features like LOW PROFILE, just to name a few.-55°C~125°C Operating Temperature is the default operating temperature for the device.
