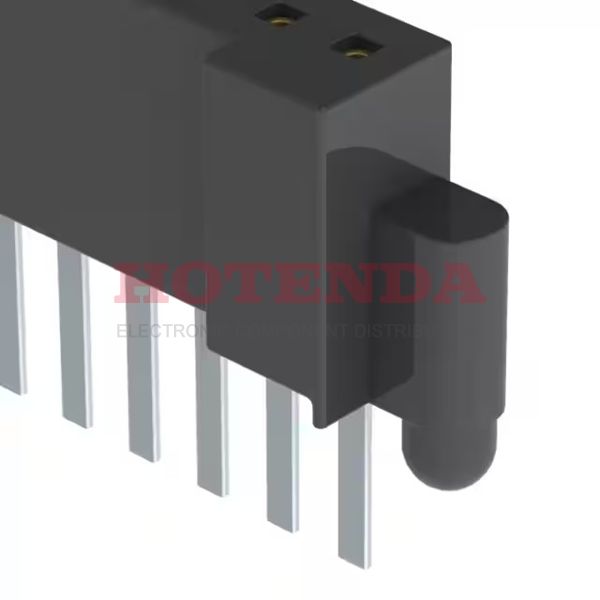

Name: SFM-110-T1-L-S-A
Brand: Samtec Inc.
SKU: SFM-110-T1-L-S-A
Price: 4.91000 USD
Availability: InStock

new-10%

SFM-110-T1-L-S-A

Manufacturer part number:SFM-110-T1-L-S-A

Manufacturer:Samtec Inc.

Description:1 RowsReceptacleSolderPhosphor BronzeThrough HoleBulkGoldLiquid Crystal Polymer (LCP)10 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SFM-110-T1-L-S-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	Tiger Eye™ SFM
JESD-609 Code	e3
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	10
Number of Rows	1
Gender	Female
Voltage - Rated	250VAC
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.2A per Contact
Insulation Height	0.180 4.57mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reliability	COMMERCIAL
Body Length or Diameter	0.625 inch
Contact Length - Post	0.120 3.05mm
Number Of PCB Rows	1
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.095 inch
UL Flammability Code	94V-0
Mating Contact Pitch	0.05 inch
Contact Finish Thickness - Mating	10.0μin 0.25μm
Stack Height (Mating)	6.02mm 6.17mm 7.80mm 7.95mm 9.58mm 9.73mm 11.48mm 11.63mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

SFM-110-T1-L-S-A Product Details

SFM-110-T1-L-S-A Overview

The packaging is Receptacle.This device is mounted in the Through Hole position.We package the product with a Bulk case.It's from the Tiger Eye™ SFM Series.A number of aspects of its Board Guide feature make it more powerful.Through Hole is the mounting point for the part.-55°C~125°C Operating Temperature is the default.
