Name: SFM-105-01-L-D-P
Brand: Samtec Inc.
SKU: SFM-105-01-L-D-P
Availability: InStock

new-10%

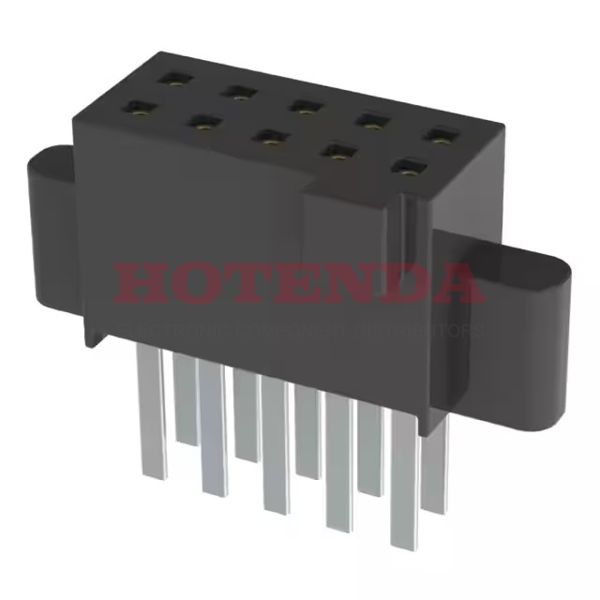

SFM-105-01-L-D-P

Manufacturer part number:SFM-105-01-L-D-P

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderBeryllium CopperThrough HoleBulkGoldLiquid Crystal Polymer (LCP)10 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SFM-105-01-L-D-P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	Tiger Eye™ SFM
Feature	Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	10
Number of Rows	2
Voltage - Rated	250VAC
Additional Feature	POLARIZED
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.2A per Contact
Insulation Height	0.180 4.57mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.050 (1.27mm)
Contact Length - Post	0.120 3.05mm
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	10.0μin 0.25μm
Stack Height (Mating)	6.02mm 6.17mm 7.80mm 7.95mm 9.58mm 9.73mm 11.48mm 11.63mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SFM-105-01-L-D-P Product Details

SFM-105-01-L-D-P Overview

The packaging contains Receptacle.The device's mounting type is Through Hole.Packaging for the product is carried out via a Bulk case.As a product of the Tiger Eye™ SFM Series, it can be found in this category.Other features include POLARIZED, to name just a few.A number of features make it more powerful because of its Pick and Place feature.This device runs at -55°C~125°C operating temperature.
