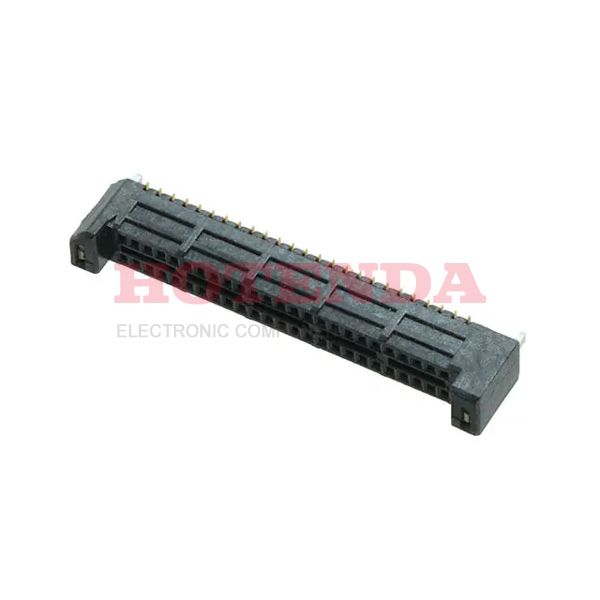

Name: SEM-125-02-03.0-H-D-A
Brand: Samtec Inc.
SKU: SEM-125-02-03.0-H-D-A
Price: 19.77000 USD
Availability: InStock

new

SEM-125-02-03.0-H-D-A

Manufacturer part number:SEM-125-02-03.0-H-D-A

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderBeryllium CopperSurface MountTrayGoldLiquid Crystal Polymer (LCP)50 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SEM-125-02-03.0-H-D-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Board Mounting Option	POSITIONING PIN
Operating Temperature	-55°C~125°C
Packaging	Tray
Series	Tiger Eye™ SEM
JESD-609 Code	e4
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	50
Number of Rows	2
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	2.6A per Contact
Total Number of Contacts	50
Terminal Pitch	0.8mm
Insulation Height	0.177 4.50mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.031 0.80mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	0.965 inch
Row Spacing - Mating	0.125 (3.18mm)
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Body Depth	0.177 inch
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	Flash
Stack Height (Mating)	6mm 7mm 10mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

SEM-125-02-03.0-H-D-A Product Details

SEM-125-02-03.0-H-D-A Overview

The packaging contains Receptacle.Mounting type is Surface Mount.It has been determined that a Tray case is necessary to package the product.It's part of the Tiger Eye™ SEM Series.A number of features make it more powerful because of its Board Guide feature.-55°C~125°C Operating Temperature is what the device runs at.
