Name: QTS-050-01-F-D-RA-WT
Brand: Samtec Inc.
SKU: QTS-050-01-F-D-RA-WT
Price: 23.80000 USD
Availability: InStock

new

QTS-050-01-F-D-RA-WT

Manufacturer part number:QTS-050-01-F-D-RA-WT

Manufacturer:Samtec Inc.

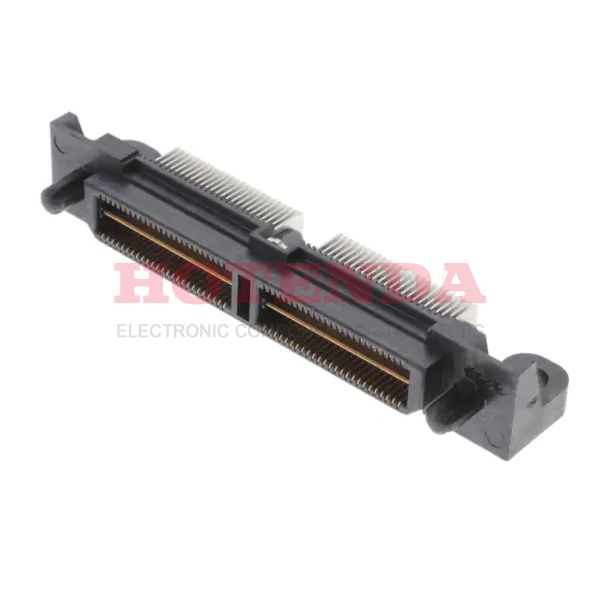

Description:Header, Outer Shroud Contacts Tray 2 Rows 0.025 0.64mm Surface Mount, Right Angle 100 Positions Q Strip® QTS Gold Solder Bronze

Case Package:SOT-23

Datasheet:QTS-050-01-F-D-RA-WT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Bronze
Mounting Type	Surface Mount, Right Angle
Housing Material	Polymer
Mounting Option 1	LOCKING
Packaging	Tray
Published	2009
Series	Q Strip® QTS
JESD-609 Code	e3
Feature	Ground Bus (Plane), Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Outer Shroud Contacts
Number of Positions	100
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Number of Rows	2
Gender	Male
Additional Feature	POLARIZED
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.025 0.64mm
Total Number of Contacts	100
Orientation	Right Angle
Depth	15.37mm
Number of Conductors	ONE
Contact Finish	Gold
Reliability	COMMERCIAL
Lead Pitch	635μm
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Body Breadth	0.371 inch
Rated Current (Signal)	2A
Contact Style	BELLOWED TYPE
Contact Resistance	15mOhm
Insulation Resistance	15000000000Ohm
Body/Shell Style	RECEPTACLE
Max Voltage Rating (AC)	275V
Polarization Key	POLARIZED HOUSING
Contact Pattern	RECTANGULAR
Length	54.73mm
Contact Finish Thickness	3.00μin 0.076μm
Plating Thickness	FLASH inch
Height Above Board	0.371 9.42mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

QTS-050-01-F-D-RA-WT Product Details

QTS-050-01-F-D-RA-WT Overview

This product is packaged in a Header, Outer Shroud Contacts box.An Tray case is utilized for packaging the product.Surface Mount, Right Angle indicates that the device is mounted.The product is a part of the Q Strip® QTS Series.It is possible to ensure that Ground Bus (Plane), Solder Retention remains constant during operation.Use it below 125°C.A minimum temperature of -55°C must be maintained for the operation of this device.Furthermore, there are other features such as POLARIZED, to name a few.
