Name: FX8C-60P-SV2(91)
Brand: Hirose Electric Co Ltd
SKU: FX8C-60P-SV2(91)
Price: 4.30000 USD
Availability: InStock

new-10%

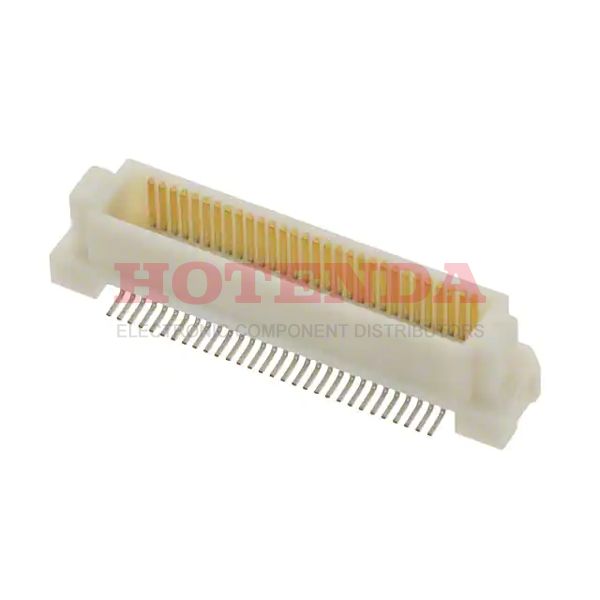

FX8C-60P-SV2(91)

Manufacturer part number:FX8C-60P-SV2(91)

Manufacturer:Hirose Electric Co Ltd

Description:FX8C-60P-SV2(91) datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FX8C-60P-SV2(91) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Bronze
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polyphenylene
Packaging	Tube
Published	2009
Series	FunctionMax™ FX8C
JESD-609 Code	e3
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
ECCN Code	EAR99
Connector Type	Header, Outer Shroud Contacts
Number of Positions	60
Number of Rows	2
Gender	Male
Voltage - Rated	100V
Additional Feature	LOW PROFILE
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.024 0.60mm
Total Number of Contacts	60
Orientation	Straight
Current Rating	400mA
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	0.969 inch
Number Of PCB Rows	2
Lead Pitch	600μm
PCB Contact Pattern	RECTANGULAR
Operating Temperature (Max)	85°C
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Min)	-55°C
UL Flammability Code	94V-0
Housing Color	Brown
Rated Current (Signal)	0.4A
Contact Style	BELLOWED TYPE
Contact Resistance	80mOhm
Insulation Resistance	100000000Ohm
Body/Shell Style	PLUG
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	300VAC V
PCB Contact Row Spacing	4.445 mm
Durability	50 Cycles
Contact Pattern	RECTANGULAR
Height Above Board	0.254 6.45mm
Stack Height (Mating)	7mm 12mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

FX8C-60P-SV2(91) Product Details

FX8C-60P-SV2(91) Overview

This product is packaged in a Header, Outer Shroud Contacts cartonThe product is packaged in a Tube case.It's mounted Surface Mount.It is part of the FunctionMax? FX8C Series of products.In operation, Board Guide may be maintained.When mounting this part, a Surface Mount socket must be used.Furthermore, there are other features available, such as LOW PROFILE, to name a few.
