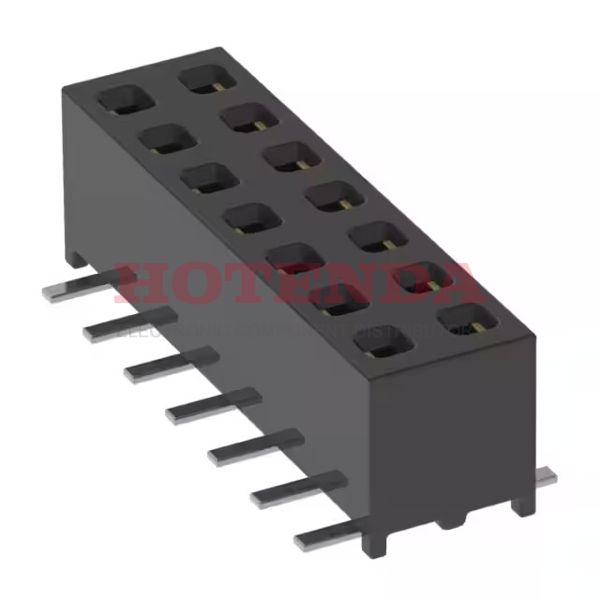

Name: MMS-107-02-LM-DV
Brand: Samtec Inc.
SKU: MMS-107-02-LM-DV
Price: 5.38000 USD
Availability: InStock

new-10%

MMS-107-02-LM-DV

Manufacturer part number:MMS-107-02-LM-DV

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountBulkGoldLiquid Crystal Polymer (LCP)14 PositionsFemale Socket

Case Package:SOT-23

Datasheet:MMS-107-02-LM-DV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	MMS
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	14
Number of Rows	2
Gender	Female
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.9A per Contact
Total Number of Contacts	14
Orientation	Straight
Depth	4mm
Insulation Height	0.177 4.50mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Row Spacing - Mating	0.079 (2.00mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.157 inch
Contact Resistance	10mOhm
Mating Contact Pitch	0.079 inch
Max Current Rating	2A
Polarization Key	POLARIZED HOUSING
PCB Contact Row Spacing	5.3086 mm
Withdrawl Force-Min	.6116 N
Length	14.55mm
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
RoHS Status	ROHS3 Compliant

MMS-107-02-LM-DV Product Details

MMS-107-02-LM-DV Overview

Packaging for this item is Receptacle.Surface Mount is the mount type.A Bulk case is used for packaging.Among the products in the MMS Series, it is one of the most popular.Device runs in -55°C~125°C operating temperature.
