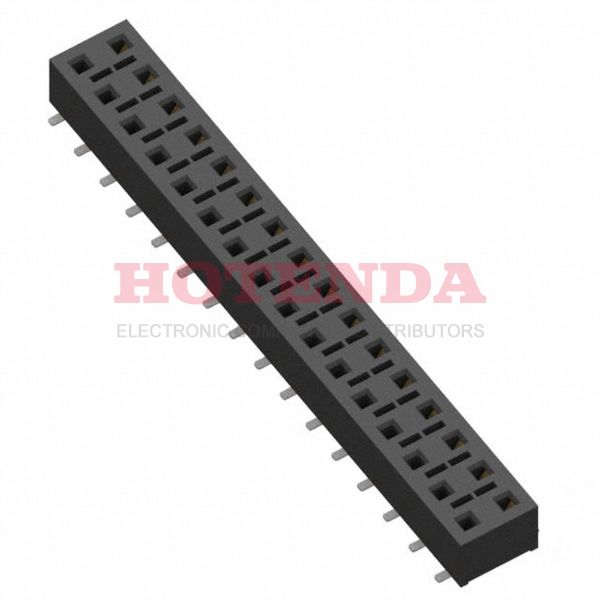

Name: HLE-116-02-S-DV-P
Brand: Samtec Inc.
SKU: HLE-116-02-S-DV-P
Price: 12.08000 USD
Availability: InStock

new

HLE-116-02-S-DV-P

Manufacturer part number:HLE-116-02-S-DV-P

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderBeryllium CopperSurface MountTubeGoldLiquid Crystal Polymer (LCP)32 PositionsFemale Socket

Case Package:SOT-23

Datasheet:HLE-116-02-S-DV-P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	HLE
JESD-609 Code	e3
Feature	Pick and Place
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	32
Number of Rows	2
Gender	Female
Voltage - Rated	400VAC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Total Number of Contacts	32
Insulation Height	0.144 3.66mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30.0μin 0.76μm
RoHS Status	ROHS3 Compliant

HLE-116-02-S-DV-P Product Details

HLE-116-02-S-DV-P Overview

The packaging contains Receptacle.Surface Mount is the mounting type of the device.It is necessary to use a Tube case for packaging the product.It's from the HLE Series.In many ways, its Pick and Place feature makes it more powerful.-55°C~125°C Operating Temperature is what the device runs at.
