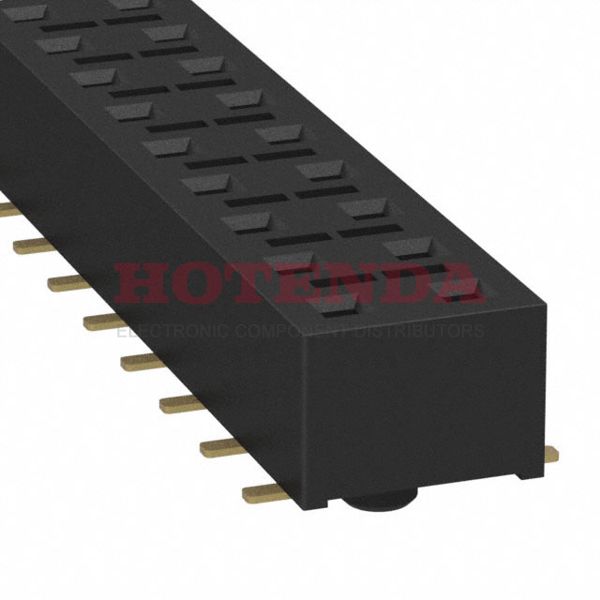

Name: HLE-113-02-G-DV-BE-A
Brand: Samtec Inc.
SKU: HLE-113-02-G-DV-BE-A
Price: 8.52000 USD
Availability: InStock

new

HLE-113-02-G-DV-BE-A

Manufacturer part number:HLE-113-02-G-DV-BE-A

Manufacturer:Samtec Inc.

Description:2 RowsReceptacle, Bottom EntrySolderBeryllium CopperSurface MountTubeGoldLiquid Crystal Polymer (LCP)26 PositionsFemale Socket

Case Package:SOT-23

Datasheet:HLE-113-02-G-DV-BE-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2011
Series	HLE
JESD-609 Code	e4
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle, Bottom Entry
Number of Positions	26
Number of Rows	2
Gender	Female
Voltage - Rated	400VAC
Additional Feature	BOTTOM ENTRY, TIGER BEAM CONTACT
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Total Number of Contacts	26
Orientation	Straight
Depth	6.6mm
Insulation Height	0.144 3.66mm
Style	Board to Board
Number of Positions Loaded	All
Reach Compliance Code	not_compliant
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Max Voltage Rating (AC)	400V
Max Current Rating	2.5A
Length	33.02mm
Contact Finish Thickness - Mating	20.0μin 0.51μm
Contact Finish Thickness - Post	3.00μin 0.076μm
RoHS Status	ROHS3 Compliant

HLE-113-02-G-DV-BE-A Product Details

HLE-113-02-G-DV-BE-A Overview

You get it in Receptacle, Bottom Entry packaging.Surface Mount is the mounting type for the device.It is necessary to use a Tube case for packaging the product.It's part of the HLE Series.Other features include BOTTOM ENTRY, TIGER BEAM CONTACT, to name just a few.Its Board Guide feature renders it more powerful in many ways.This device operates at a temperature of -55°C~125°C.
