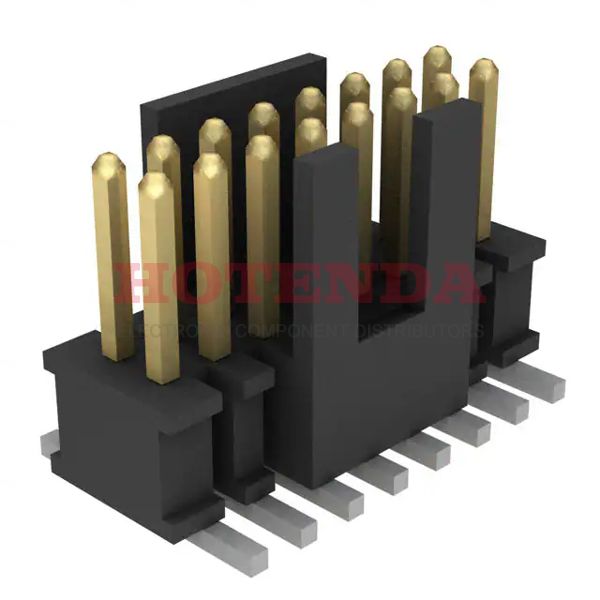

Name: FTSH-108-01-S-DV-K-TR
Brand: Samtec Inc.
SKU: FTSH-108-01-S-DV-K-TR
Price: 3.84000 USD
Availability: InStock

new-10%

FTSH-108-01-S-DV-K-TR

Manufacturer part number:FTSH-108-01-S-DV-K-TR

Manufacturer:Samtec Inc.

Description:FTSH Series 2-Row Header, Cuttable Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Gold Liquid Crystal Polymer (LCP) 16-Position Board to Board or Cable 0.099 2.51mm Height

Case Package:SOT-23

Datasheet:FTSH-108-01-S-DV-K-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	FTSH
Published	2015
JESD-609 Code	e3
Feature	Keying Shroud
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Cuttable
Number of Positions	16
Number of Rows	2
Gender	Male
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Male Pin
Current Rating (Amps)	3.4A per Contact
Insulation Height	0.099 2.51mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.050 (1.27mm)
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.120 3.05mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

FTSH-108-01-S-DV-K-TR Product Details

FTSH-108-01-S-DV-K-TR Overview

The product is packaged in Header, Cuttable.This device is mounted in the Surface Mount position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the FTSH Series.There are a number of advantages to its Keying Shroud feature.As a result, the device runs at -55°C~125°C Operating Temperature.
