Name: 95278-401A20LF
Brand: Amphenol ICC (FCI)
SKU: 95278-401A20LF
Price: 0.94000 USD
Availability: InStock

new-10%

95278-401A20LF

Manufacturer part number:95278-401A20LF

Manufacturer:Amphenol ICC (FCI)

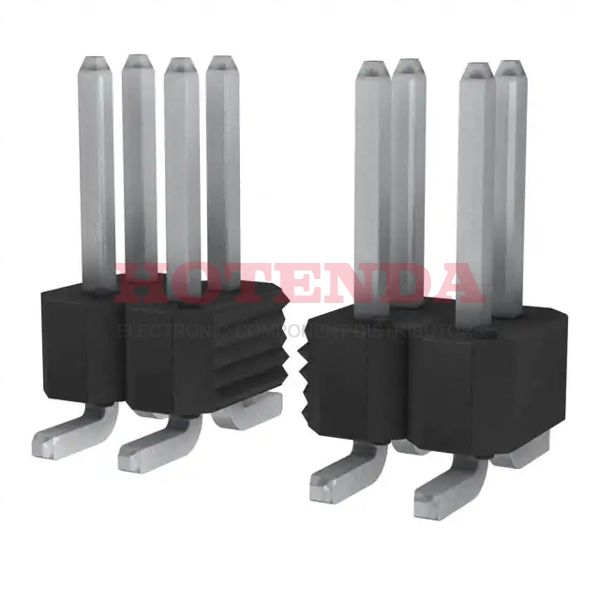

Description:BERGSTIK® Series 2-Row Header, Breakaway Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Tin Thermoplastic 20-Position Board to Board 0.100 2.54mm Height

Case Package:SOT-23

Datasheet:95278-401A20LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Thermoplastic
Housing Material	Thermoplastic
Packaging	Tape & Reel (TR)
Series	BERGSTIK®
Feature	Pick and Place
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	20
Max Operating Temperature	125°C
Min Operating Temperature	-65°C
Color	Black
Number of Rows	2
Gender	Male
Voltage - Rated	1.5kV
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Type	Male Pin
Pitch	2.54mm
Orientation	Straight
Depth	4.83mm
Insulation Height	0.100 2.54mm
Style	Board to Board
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Shrouding	Unshrouded
Number of Contacts	20
Contact Finish - Post	Tin
Contact Length - Mating	0.232 5.90mm
Contact Gender	Male
Housing Color	Black
Insulation Resistance	5GOhm
Max Voltage Rating (AC)	1.5kV
Mating Post Length	5.84mm
Length	25.4mm
Contact Finish Thickness - Mating	78.7μin 2.00μm
Contact Finish Thickness - Post	78.7μin 2.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

95278-401A20LF Product Details

95278-401A20LF Overview

Packaging is Header, Breakaway.Surface Mount is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the BERGSTIK® Series, it can be found in this category.Temperatures below 125°C are best for using it.There's a minimum temperature of -65°C for this device.With its Pick and Place feature, it is more powerful in many ways.In this case, Surface Mount mounts the part.
