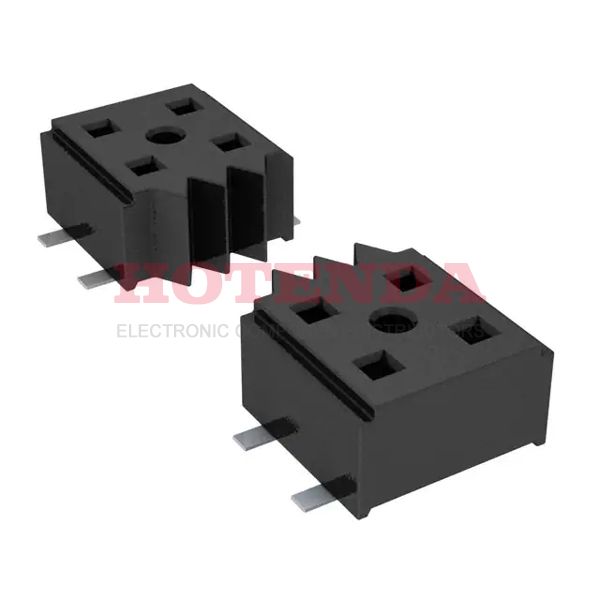

Name: CLT-110-02-SM-D-BE-A-TR
Brand: Samtec Inc.
SKU: CLT-110-02-SM-D-BE-A-TR
Price: 3.73000 USD
Availability: InStock

new-10%

CLT-110-02-SM-D-BE-A-TR

Manufacturer part number:CLT-110-02-SM-D-BE-A-TR

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle, Bottom Entry Solder Phosphor Bronze Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 20 Positions Female Socket

Case Package:SOT-23

Datasheet:CLT-110-02-SM-D-BE-A-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	CLT
JESD-609 Code	e3
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle, Bottom Entry
Number of Positions	20
Number of Rows	2
Gender	Female
Additional Feature	BOTTOM ENTRY, LOW PROFILE
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Total Number of Contacts	20
Insulation Height	0.083 2.10mm
Style	Board to Board
Number of Positions Loaded	All
Reach Compliance Code	not_compliant
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

CLT-110-02-SM-D-BE-A-TR Product Details

CLT-110-02-SM-D-BE-A-TR Overview

This product is packaged in a Receptacle, Bottom Entry box.Surface Mount indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the CLT Series.Furthermore, there are other features such as BOTTOM ENTRY, LOW PROFILE, to name a few.In many ways, Board Guide makes it more powerful.Operating temperature is set to -55°C~125°C.
