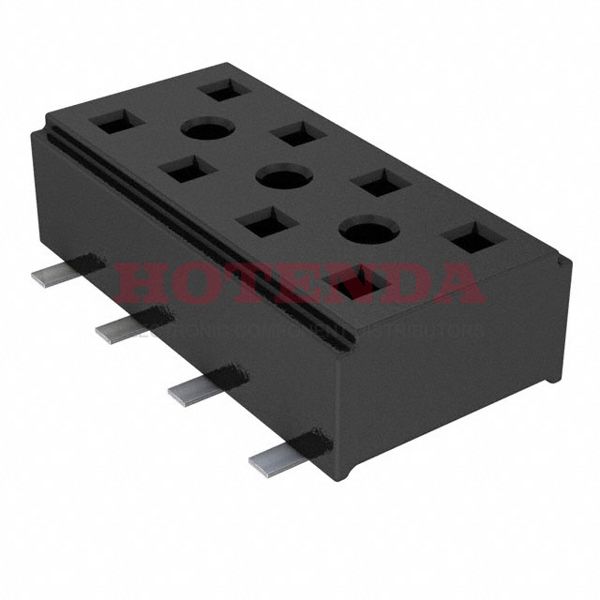

Name: CLT-104-02-LM-D-BE-P-TR
Brand: Samtec Inc.
SKU: CLT-104-02-LM-D-BE-P-TR
Price: 1.71000 USD
Availability: InStock

new-10%

CLT-104-02-LM-D-BE-P-TR

Manufacturer part number:CLT-104-02-LM-D-BE-P-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacle, Bottom EntrySolderPhosphor BronzeSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)8 PositionsFemale Socket

Case Package:SOT-23

Datasheet:CLT-104-02-LM-D-BE-P-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2016
Series	CLT
JESD-609 Code	e3
Feature	Pick and Place
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle, Bottom Entry
Number of Positions	8
Number of Rows	2
Gender	Female
Additional Feature	BOTTOM ENTRY, LOW PROFILE
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Total Number of Contacts	8
Orientation	Straight
Depth	4mm
Insulation Height	0.083 2.10mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Resistance	10mOhm
Max Current Rating	3.3A
Length	8mm
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

CLT-104-02-LM-D-BE-P-TR Product Details

CLT-104-02-LM-D-BE-P-TR Overview

Currently, it is packaged in Receptacle, Bottom Entry.Surface Mount is the mount type.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the CLT Series of products.Furthermore, there are other features available, such as BOTTOM ENTRY, LOW PROFILE, to name a few.A number of advantages can be derived from its Pick and Place feature.The device runs in -55°C~125°C Operating Temperature.
