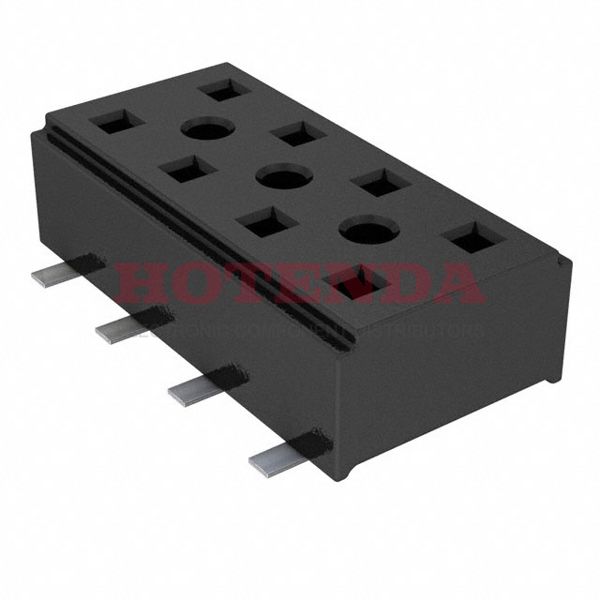

Name: CLT-104-02-LM-D-A
Brand: Samtec Inc.
SKU: CLT-104-02-LM-D-A
Price: 3.00000 USD
Availability: InStock

new-10%

CLT-104-02-LM-D-A

Manufacturer part number:CLT-104-02-LM-D-A

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTubeGoldLiquid Crystal Polymer (LCP)8 PositionsFemale Socket

Case Package:SOT-23

Datasheet:CLT-104-02-LM-D-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	CLT
JESD-609 Code	e3
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	8
Number of Rows	2
Gender	Female
Additional Feature	LOW PROFILE
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Total Number of Contacts	8
Orientation	Straight
Depth	4mm
Insulation Height	0.083 2.10mm
Style	Board to Board
Number of Positions Loaded	All
Reach Compliance Code	not_compliant
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Resistance	10mOhm
Max Current Rating	2A
Length	8mm
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

CLT-104-02-LM-D-A Product Details

CLT-104-02-LM-D-A Overview

Packaging is in the form of Receptacle.Surface Mount is the mount type.It has been determined that a Tube case is necessary to package the product.Product number CLT belongs to the CLT Series.There are also other features, like LOW PROFILE, to name a few.A number of aspects of its Board Guide feature make it more powerful.Operating temperature is -55°C~125°C.
