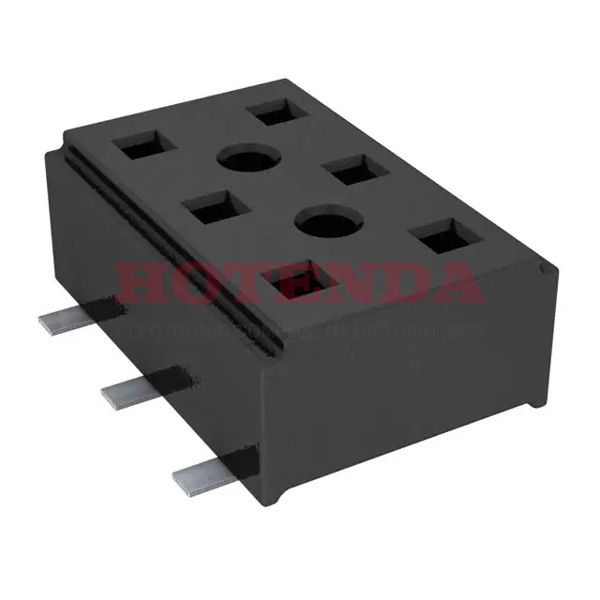

Name: CLT-103-02-L-D-TR
Brand: Samtec Inc.
SKU: CLT-103-02-L-D-TR
Price: 2.15000 USD
Availability: InStock

new-10%

CLT-103-02-L-D-TR

Manufacturer part number:CLT-103-02-L-D-TR

Manufacturer:Samtec Inc.

Description:CLT-103-02-L-D-TR datasheet pdf and Rectangular Connectors - Headers, Receptacles, Female Sockets product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:CLT-103-02-L-D-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2010
Series	CLT
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	6
Number of Rows	2
Additional Feature	TAPE & REEL PACKAGING
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Total Number of Contacts	6
Orientation	Straight
Depth	5.16mm
Insulation Height	0.083 2.10mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.079 (2.00mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.157 inch
Contact Resistance	10mOhm
Mating Contact Pitch	0.079 inch
Max Current Rating	3.3A
Durability	100 Cycles
Insertion Force-Max	.5004 N
Length	6mm
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

CLT-103-02-L-D-TR Product Details

CLT-103-02-L-D-TR Overview

This product is packaged in a Receptacle carton.It's mounted Surface Mount.It's packaged in a Tape & Reel (TR) case.This is from the CLT Series.To name a few, there is also TAPE & REEL PACKAGING.-55°C~125°C Operating Temperature is what the device runs at.
