Name: CLP-134-02-F-DH-TR
Brand: Samtec Inc.
SKU: CLP-134-02-F-DH-TR
Availability: InStock

new-10%

CLP-134-02-F-DH-TR

Manufacturer part number:CLP-134-02-F-DH-TR

Manufacturer:Samtec Inc.

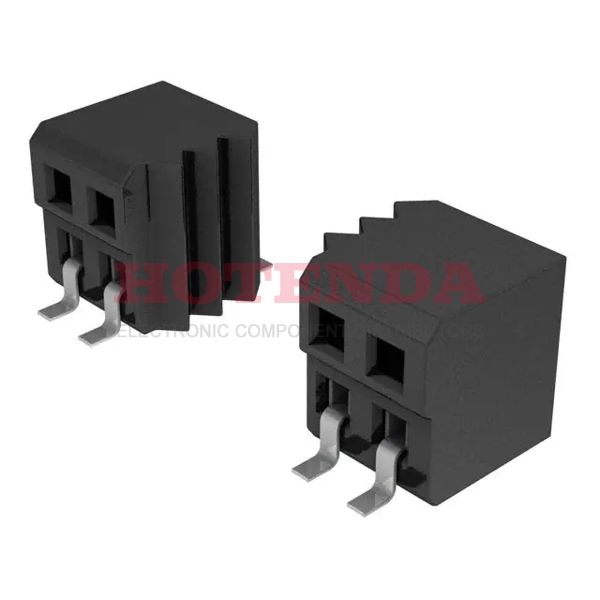

Description:2 Rows Receptacle Solder Phosphor Bronze Surface Mount, Right Angle Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 68 Positions Female Socket

Case Package:SOT-23

Datasheet:CLP-134-02-F-DH-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Gold
Mounting Type	Surface Mount, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	CLP
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	68
Number of Rows	2
Gender	Female
Voltage - Rated	240VAC 330VDC
Fastening Type	Push-Pull
Voltage - Rated DC	340V
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3.3A per Contact
Pitch	1.27mm
Insulation Height	0.135 3.43mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Voltage - Rated AC	240V
Row Spacing - Mating	0.050 (1.27mm)
Number of Contacts	68
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CLP-134-02-F-DH-TR Product Details

CLP-134-02-F-DH-TR Overview

Packaging for this item is Receptacle.There is a mounting type of Surface Mount, Right Angle for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the CLP Series.In this case, the device operates at -55°C~125°C Operating Temperature.
