Name: CLP-125-02-G-D-BE
Brand: Samtec Inc.
SKU: CLP-125-02-G-D-BE
Price: 12.87000 USD
Availability: InStock

new

CLP-125-02-G-D-BE

Manufacturer part number:CLP-125-02-G-D-BE

Manufacturer:Samtec Inc.

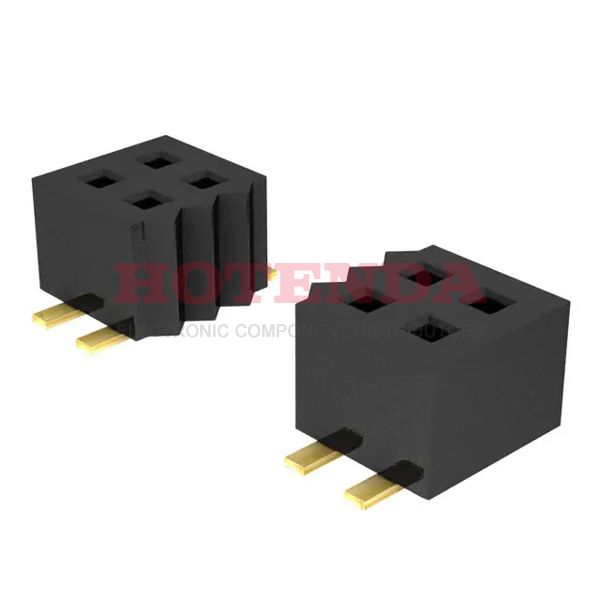

Description:2 Rows Receptacle, Bottom Entry Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 50 Positions Female Socket

Case Package:SOT-23

Datasheet:CLP-125-02-G-D-BE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2013
Series	CLP
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle, Bottom Entry
Number of Positions	50
Number of Rows	2
Gender	Receptacle
Additional Feature	BOTTOM ENTRY, E.L.P., LOW PROFILE, TIGER CLAW CONTACT
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Voltage - Rated DC	340V
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.3A per Contact
Total Number of Contacts	50
Insulation Height	0.084 2.14mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Voltage - Rated AC	240V
Reliability	COMMERCIAL
Body Length or Diameter	0.617 inch
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Body Depth	0.09 inch
Contact Resistance	10mOhm
Mating Contact Pitch	0.05 inch
Durability	100 Cycles
Withdrawl Force-Min	.556 N
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Contact Finish Thickness - Post	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CLP-125-02-G-D-BE Product Details

CLP-125-02-G-D-BE Overview

The packaging contains Receptacle, Bottom Entry.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tube.Product number CLP belongs to the CLP Series.Further, there are features such as BOTTOM ENTRY, E.L.P., LOW PROFILE, TIGER CLAW CONTACT, to name only a few.There is a Surface Mount mount on the part.This device operates at a temperature of -55°C~125°C.
