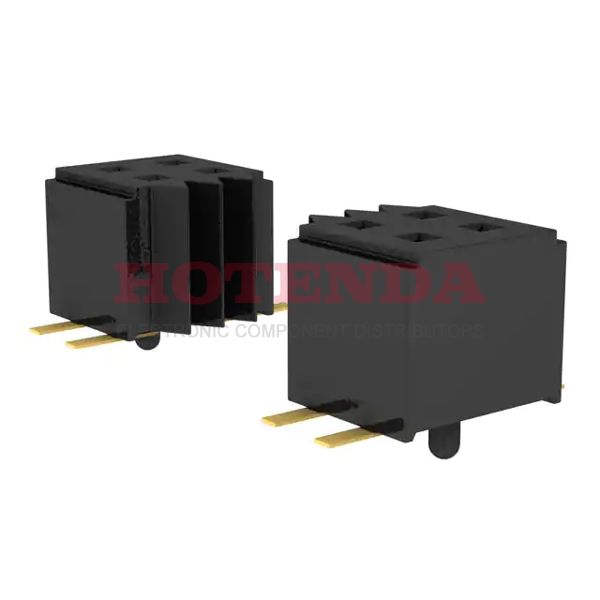

Name: CLM-118-02-G-D-A-P
Brand: Samtec Inc.
SKU: CLM-118-02-G-D-A-P
Price: 10.57000 USD
Availability: InStock

new

CLM-118-02-G-D-A-P

Manufacturer part number:CLM-118-02-G-D-A-P

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTubeGoldLiquid Crystal Polymer (LCP)36 PositionsFemale Socket

Case Package:SOT-23

Datasheet:CLM-118-02-G-D-A-P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	CLM
JESD-609 Code	e4
Feature	Board Guide, Pick and Place
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	36
Number of Rows	2
Gender	Female
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	2.8A per Contact
Insulation Height	0.084 2.14mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.039 1.00mm
Insulation Color	Black
Row Spacing - Mating	0.039 (1.00mm)
Contact Finish Thickness - Mating	10.0μin 0.25μm
Contact Finish Thickness - Post	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CLM-118-02-G-D-A-P Product Details

CLM-118-02-G-D-A-P Overview

This product is packaged in a Receptacle carton.The mounting type of the device is Surface Mount.It is necessary to use a Tube case for packaging the product.The product is a part of the CLM Series.This feature renders it more powerful in a number of ways because of its Board Guide, Pick and Place feature.Operating temperature is -55°C~125°C.
