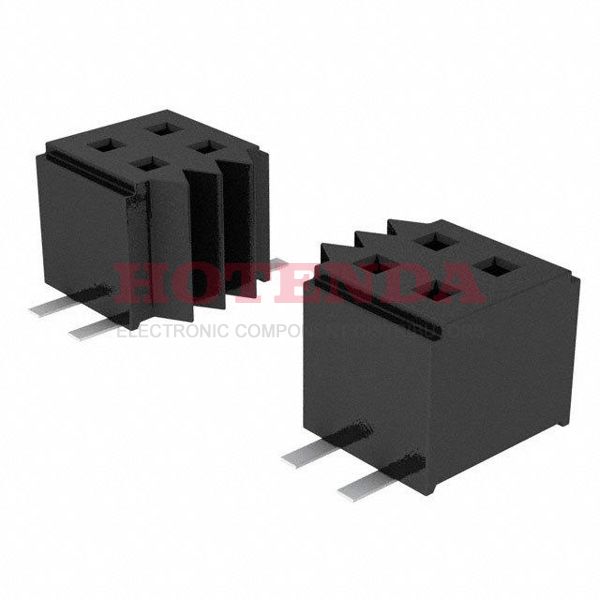

Name: CLM-110-02-L-D-K
Brand: Samtec Inc.
SKU: CLM-110-02-L-D-K
Price: 7.89000 USD
Availability: InStock

new

CLM-110-02-L-D-K

Manufacturer part number:CLM-110-02-L-D-K

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTubeGoldLiquid Crystal Polymer (LCP)20 PositionsFemale Socket

Case Package:SOT-23

Datasheet:CLM-110-02-L-D-K Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2016
Series	CLM
JESD-609 Code	e3
Feature	Pick and Place
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	20
Number of Rows	2
Gender	Female
Additional Feature	LOW PROFILE
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	2.8A per Contact
Total Number of Contacts	20
Terminal Pitch	1mm
Insulation Height	0.084 2.14mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.039 1.00mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	0.411 inch
Row Spacing - Mating	0.039 (1.00mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.1 inch
UL Flammability Code	94V-0
Body Depth	0.084 inch
Contact Resistance	15mOhm
Mating Contact Pitch	0.039 inch
PCB Contact Row Spacing	3.175 mm
Durability	100 Cycles
Insertion Force-Max	.417 N
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CLM-110-02-L-D-K Product Details

CLM-110-02-L-D-K Overview

A Receptacle package is included with it.Mounting type is Surface Mount.A Tube case is used to package the product.It's from the CLM Series.Further, there are features such as LOW PROFILE, to name only a few.A number of features make the Pick and Place feature more powerful.-55°C~125°C Operating Temperature is what the device runs at.
